Racecourse PA Systems & Martyn’s Law: Designing for Safety, Clarity, and Control
Quick Answer
Racecourse PA systems must deliver clear, reliable communication across large outdoor environments, supporting both daily operations and emergency response. With Martyn’s Law, the focus has shifted from broadcasting sound to ensuring messages are understood instantly.
Modern systems use distributed speakers, zoning, acoustic modelling, and DSP alignment to maintain clarity across complex environments. When intelligently designed, they provide consistent coverage, support safety requirements, and ensure effective communication under pressure.
Introduction to racecourse PA systems
Sound clarity fails in large outdoor venues because (annoyingly) sound doesn’t stay where you put it and everything from the weather to over exuberant guests are competing with it. Sound spreads, fades, and loses definition long before it reaches the audience.
At a racecourse, that’s not just frustrating … it’s a risk.
Announcements need to be heard, understood, and acted on instantly. Whether it’s race commentary, operational updates, or emergency instructions, clarity isn’t optional.
It’s critical.
The New Reality for Racecourses
Racecourses have always relied on sound systems to manage crowds and deliver information.
But expectations have changed.
With the introduction of Martyn’s Law, venues must now demonstrate how they would communicate clearly during a major incident. Sound systems are no longer just operational tools; they’re part of a venue’s safety infrastructure.
The question is no longer: “Can everyone hear it?”
It’s: “Will everyone understand it, immediately and under pressure?”

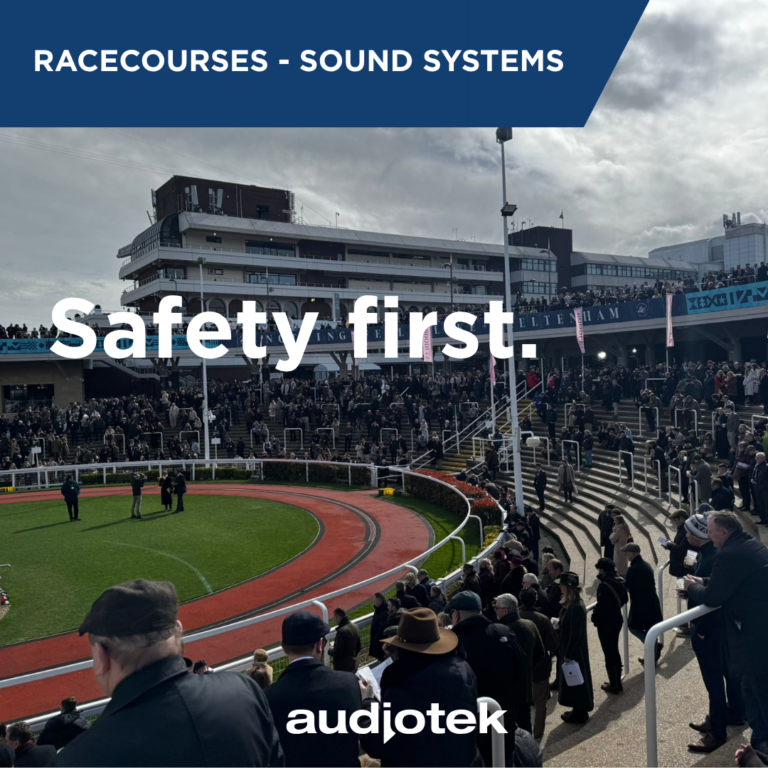

At Cheltenham Racecourse, crowds can exceed 75,000. The system is designed to ensure commentary and safety messaging remain clear across the entire venue; even during peak moments like the famous ‘Cheltenham Roar.’
Why Many Racecourse PA Systems Fall Short
In practice, many systems struggle when it matters most.
Common issues include:
- Unclear or distorted announcements.
- Uneven coverage across large outdoor areas.
- Delays between zones.
- Over-reliance on volume rather than clarity.
Environments like Cheltenham highlight these challenges clearly. Open structures, high crowd density, and ambient noise create conditions where traditional systems simply can’t maintain intelligibility.
These challenges are explored further in our outdoor sound clarity guide, which explains why sound often fails in large open environments.
When clarity drops, communication breaks down and that’s where risk increases.
What Modern Racecourse PA Systems Need to Deliver
To meet both operational and safety demands, systems must be designed around four key principles:
Clear Speech Intelligibility
Announcements must be easy to understand, not just audible. This requires careful control of frequency, timing, and coverage.
Consistent Coverage
Every area (from grandstands to open viewing spaces) must receive clear, even sound without dead zones or excessive overlap.
Zoned Control
Different areas need different messaging at different times. Systems must allow targeted communication while maintaining overall coordination.
Reliability and Redundancy
In critical situations, systems must perform without failure. This includes backup pathways, fail-safes, and robust infrastructure.
Designing racecourse PA systems for Safety and Communication
Effective communication during an incident depends on more than just having a PA system in place.
It requires:
- messages that cut through background noise
- consistent delivery across all zones
- clarity that reduces confusion, not adds to it
Modern racecourse systems are increasingly designed to meet recognised safety standards, ensuring emergency announcements remain intelligible across the venue.
For a deeper look at compliance and communication planning, see our
large venue PA systems and safety communication guide.
The Technology Behind Modern Racecourse PA Systems
Networked Audio Systems
Modern racecourses rely on networked infrastructure to distribute sound efficiently across large areas.
This allows:
- flexible routing of audio signals
- centralised control
- scalability as the venue evolves
See our racecourse networked sound guide for more detail.
Unified Audio Systems
Rather than separate systems for different areas, unified designs bring everything together.
This ensures:
- consistent sound quality
- seamless transitions between zones
- simplified system management
Explore our racecourse PA design guide for more on this approach.
How Racecourse PA Systems Are Designed in Practice
Designing a racecourse PA system isn’t about making sound louder. It’s about controlling how sound behaves across distance, space, and time.
1. Site Assessment
Designing an effective racecourse PA system starts long before any equipment is specified. It begins with a detailed assessment of the venue itself, because no two racecourses behave the same acoustically or operationally.
This involves analysing:
- The overall layout and scale of the site.
- The position and structure of grandstands.
- Open viewing areas and trackside exposure.
- Hospitality zones and enclosed spaces.
- Typical crowd movement and density patterns.
But it goes deeper than mapping physical areas.
An experienced designer will also consider:
- How sound will travel across open ground and built structures.
- Where crowd noise is likely to peak.
- How wind direction may affect coverage.
- Where announcements need to be prioritised during key moments.
Operational use is just as important.
For example:
- Where are announcements made from?
- Who is controlling the system on race day?
- Which areas require independent messaging?
- What happens during an emergency scenario?
This stage is about translating a site plan into a communication strategy.
Because ultimately, the goal isn’t just to cover the space with sound. With the advent of Martyn’s Law, designers need to ensure that clarity, when it matters most, is the main driver for the design.
2. Acoustic Modelling
Simulating how sound will travel across grandstands, open areas, and hospitality zones to identify challenges early.
At Cheltenham, modelling tools were used extensively to predict sound behaviour across the venue, ensuring consistent coverage before installation even began.
3. System Design and User Interface
It’s no use building a top tier system that meets all of the needs of the venue, but nobody (other than a highly trained sound engineer) can drive.
Systems often need to be operated by a mix of:
- technical staff,
- event teams,
- and operational personnel.
In some cases, users may have limited technical knowledge, particularly during busy race days or high-pressure situations.
That means the system must be designed with a clear and intuitive user interface.
This typically includes:
- Simple zone selection controls.
- Clearly labelled inputs and outputs.
- Pre-configured settings for common scenarios.
- Easy access to emergency override functions.
At the same time, more advanced control remains available for technical teams when needed.
A well-designed interface ensures that:
- Announcements can be made quickly and confidently (no matter who is ‘driving’).
- Errors are minimised during live operation.
- Critical messages can be delivered without delay.
Because in practice, even the most advanced system is only effective if people can use it properly, especially in an emergency.
4. racecourse PA systems Installation
Implementing the system with precision, ensuring all components align with the design.
5. Calibration and Testing
Fine-tuning performance to ensure clarity, consistency, and reliability across all areas.
Technical Design Considerations for Racecourse PA Systems
Designing a racecourse PA system requires detailed technical planning to ensure clarity, coverage, and reliability.
Zoning Strategy
Racecourses are divided into zones such as:
- Grandstands.
- Paddock areas.
- Betting enclosures.
- Hospitality zones.
- Trackside.
Each zone must be independently controlled while remaining part of a unified system.
Racecourse PA systems Speaker Selection for Distance and Clarity
Different areas require different loudspeakers.
- Horn-loaded speakers project sound over long distances
- Full-range speakers provide clarity in audience areas
This combination ensures both reach and intelligibility.
Distributed System Design
Using multiple speakers positioned closer to the audience improves clarity and reduces reliance on volume.
Rather than relying on a few high-output sources, racecourses use distributed systems.
This involves:
- Placing multiple speakers closer to the audience.
- Reducing distance-related loss.
- Improving clarity and consistency.
Delay and Time Alignment
DSPs are used to synchronise sound across zones, ensuring announcements arrive clearly without echo or confusion.
racecourse PA systems Speaker Positioning and Elevation
Speakers need to be elevated and correctly angled to maintain direct sound and minimise loss.
Environmental Considerations
Systems must account for:
- Wind.
- Crowd noise.
- Weather exposure.
System Infrastructure
High performance systems typically include:
- 100V line distribution.
- Networked audio routing.
- Centralised control.
Redundancy and Backup Systems
To ensure reliability:
- Backup signal paths are included.
- Secondary microphones are available.
- Failover systems are built in.
What Good racecourse PA systems Look Like
When a racecourse PA system is designed properly:
- Announcements are clear and easy to understand.
- Coverage is consistent across the venue.
- There are no delays or dead zones.
- Communication remains effective under pressure.
At Cheltenham, this results in a system where every word of commentary can be heard clearly across the venue, supporting both the spectator experience and operational safety.
Bringing It All Together
Racecourse PA systems are no longer just about delivering sound; they’re about delivering confidence.
Confidence that:
- messages will be heard,
- instructions will be understood,
- and systems will perform when needed most.
Closing Thoughts
Modern racecourse PA systems are no longer just part of the event experience; they are part of the venue’s critical infrastructure.
As expectations around safety, communication, and operational resilience continue to evolve, particularly under Martyn’s Law, venues need systems that do far more than simply “make announcements louder.” They need intelligent, integrated communication systems that deliver clarity under pressure, across every zone, in every condition.
The reality is that outdoor environments are acoustically difficult. Crowd noise, weather, distance, and complex site layouts all work against intelligibility. That’s why successful PA design depends on careful planning, acoustic modelling, distributed coverage, and systems that are engineered around how people actually hear and respond in real-world situations.
When done properly, the result is almost invisible. Messages are understood instantly. Operations run smoothly. Safety communication feels calm, clear, and controlled; even during peak moments.
And ultimately, that’s the real goal of modern racecourse sound design: not simply to broadcast sound, but to deliver confidence when it matters most.
Case Study - Cheltenham Racecourse
We recently completed a complete overhaul of the PA system at Cheltenham Racecourse. It’s a perfect example of how to upgrade a PA system to align with enhanced guest experience and the demands of safety legislation. Watch the video on how we achieved the end result.
