Concert Hall Acoustic Design: Fundamental Science, Architectural Styles and Performance Types
Introduction to Concert Hall Acoustic Design
Author: Chris Kmiec BEng MISCVE
Concert hall acoustic design demands precision. It brings together physics, architecture, loudspeaker system engineering, and human perception in environments where clarity, balance, and emotional impact must coexist.
Modern concert halls are rarely single-purpose venues. They must support orchestral performances, spoken word, musical theatre, and amplified contemporary music (often within the same week). Each performance type reshapes acoustic priorities, from reverberation control and early reflections to spatial reinforcement and intelligibility. Designing systems that perform consistently across these variables requires measured modelling, architectural sensitivity, and disciplined system integration.
Effective outcomes are never accidental. They are engineered through acoustic analysis, loudspeaker optimisation, control workflows, accessibility infrastructure, and careful commissioning. When these elements are aligned, the venue becomes an instrument in its own right.
This guide explores the principles and practical decisions that define successful concert hall acoustic design. It connects foundational acoustic science with real-world engineering strategies used in performance-led environments.
With over 15 years working across concert halls and complex live venues, I’ve seen first-hand how considered design elevates performance and how shortcuts undermine it. The insights that follow are grounded in that experience.
What’s Changed in Concert Hall Acoustic Design Since the First Edition
Since the first edition of this eBook was published, the role of acoustic engineering within concert halls and performance venues has continued to evolve.
While acoustic principles remain foundational, modern performance environments are no longer audio-isolated spaces. Today’s concert halls and theatres increasingly operate as integrated, multi-sensory environments where sound, visual presentation, control systems, and accessibility infrastructure must work together seamlessly to support the performance.
This Second Edition reflects that shift. Alongside refinements and clarifications to the core principles of acoustic design, this edition introduces updated perspectives on how sound systems interact with architectural elements, visual surfaces, control workflows, and audience perception. Visual systems are referenced where they influence acoustic behaviour, intelligibility, localisation, or inclusivity—not as a focus in their own right, but as contextual factors that shape how sound is experienced.
The intent of this update is not to change the book’s core purpose, but to ensure it remains relevant to the realities of modern performance venues. Audio remains the primary discipline throughout; however, it is now considered within the broader context of integrated performance systems and contemporary audience expectations.
Foundations of Concert Hall Acoustic Design
Concert Hall Acoustic Design Fundamentals: Sound Waves and Propagation
While the physics of sound applies universally, its application within concert hall acoustic design requires careful adaptation to architectural scale and performance intent. But, understanding the basics is key.
Sound Wave Generation in Concert Hall Acoustic Design
Sound waves are created when an object vibrates. These vibrations disturb the molecules in the surrounding medium, causing them to also vibrate. This sets off a chain reaction of particle interactions, causing a series of positive and negative pressure nodes. These series of positive and negative pressures are represented as a wave signal, where the signal oscillates between positive and negative pressures.
Sound Wave Characteristics in Concert Hall Acoustic Design
Frequency: This is the number of oscillations, or cycles, a sound wave completes per unit of time and is measured in Hertz (Hz). It determines the pitch of the sound; higher frequencies correspond to higher-pitched sounds.
Amplitude: This is the maximum displacement of particles in the medium from their equilibrium position as the wave passes through. It determines the loudness of the sound; larger amplitudes result in louder sounds.
Wavelength: This is the distance between two consecutive points in a simple sound wave. It is inversely proportional to frequency.
Sound Propagation in Concert Hall Acoustic Design

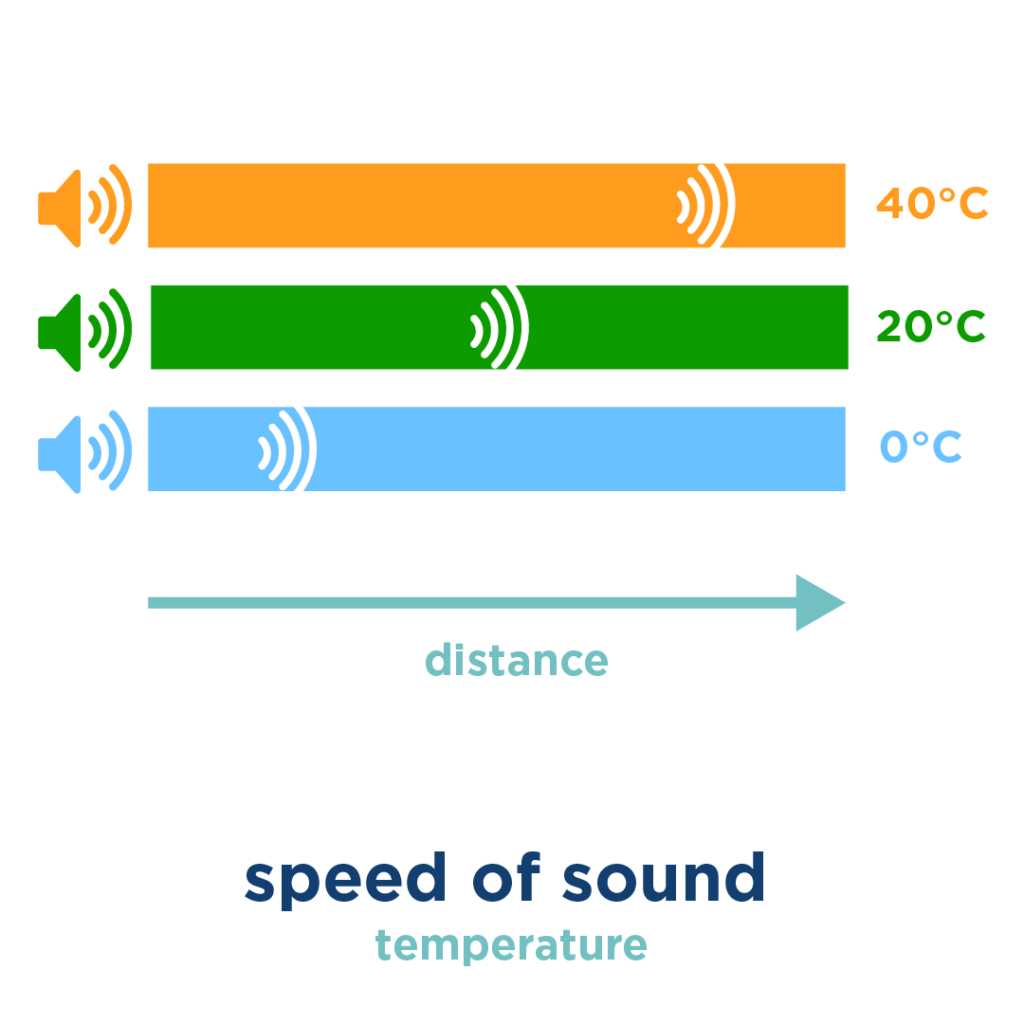

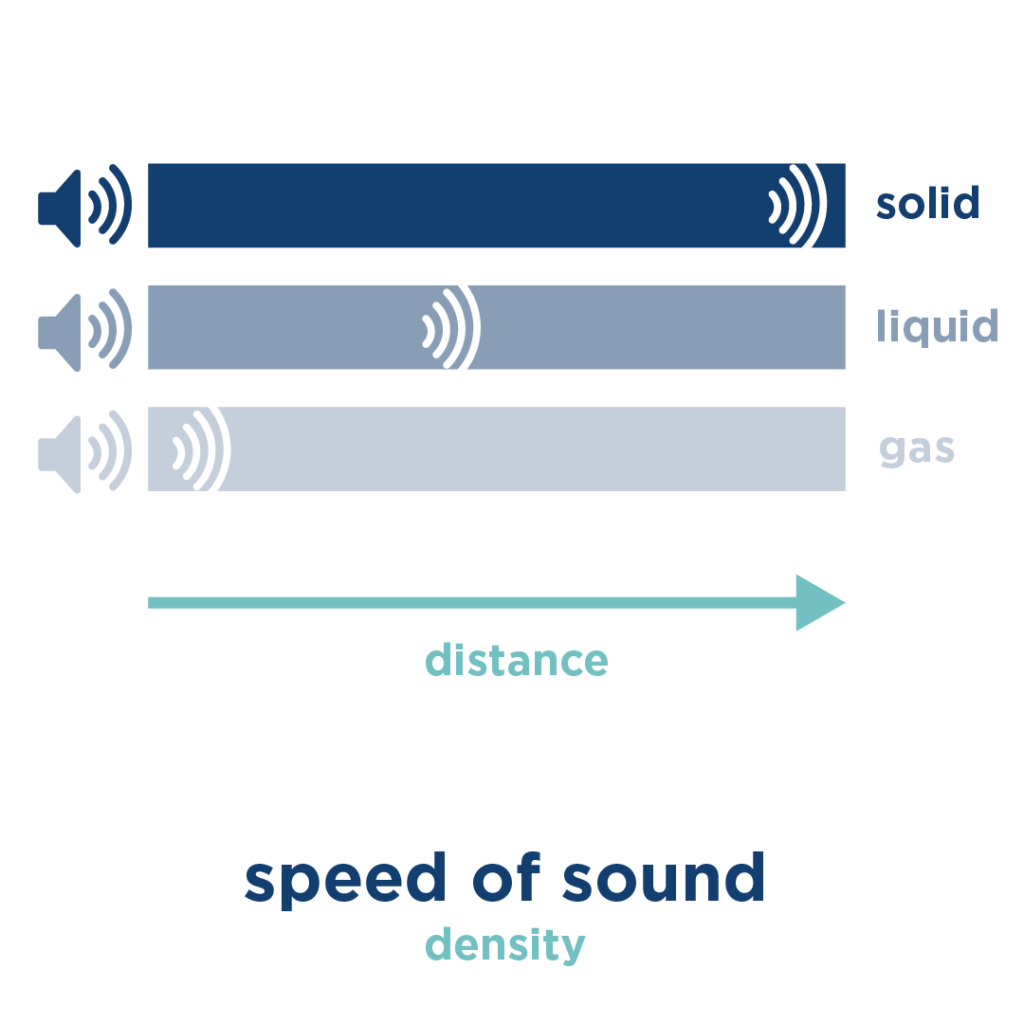

Speed of Sound: The speed of sound in a particular medium depends on the properties of that medium, such as its density and elasticity. In general, sound travels faster in denser and more elastic materials. In air, the speed of sound is 343m/s.
Reflection: Sound waves can bounce off surfaces, creating echoes. The angle of incidence equals the angle of reflection.
Scattering: Most surfaces encountered in everyday life are not perfectly flat, so unlike in a simple reflection scenario, when a sound wave reflects onto an uneven surface the sound wave scatters in a pseudo random pattern creating an unpredictable response
Refraction: Sound waves can change direction as they pass from one medium to another with different properties (e.g., air to water). This bending is due to changes in the speed of sound in different media.
Diffraction: Sound waves can be influenced to “bend” around obstacles or spread out when they encounter openings. The extent of diffraction depends on the wavelength of the sound.
How Sound Behaves in Concert Hall Acoustic Design Environments
Sound behaves differently in various environments due to the way it interacts with objects it encounters, and atmospheric conditions (the medium within it is travelling).
The behaviour of sound can be categorized into the several key principles discussed previously, including reflection, absorption, transmission, reverberation, and diffraction.
Let’s explore how these conditions may affect how sound behaves in different environments within our world around us.

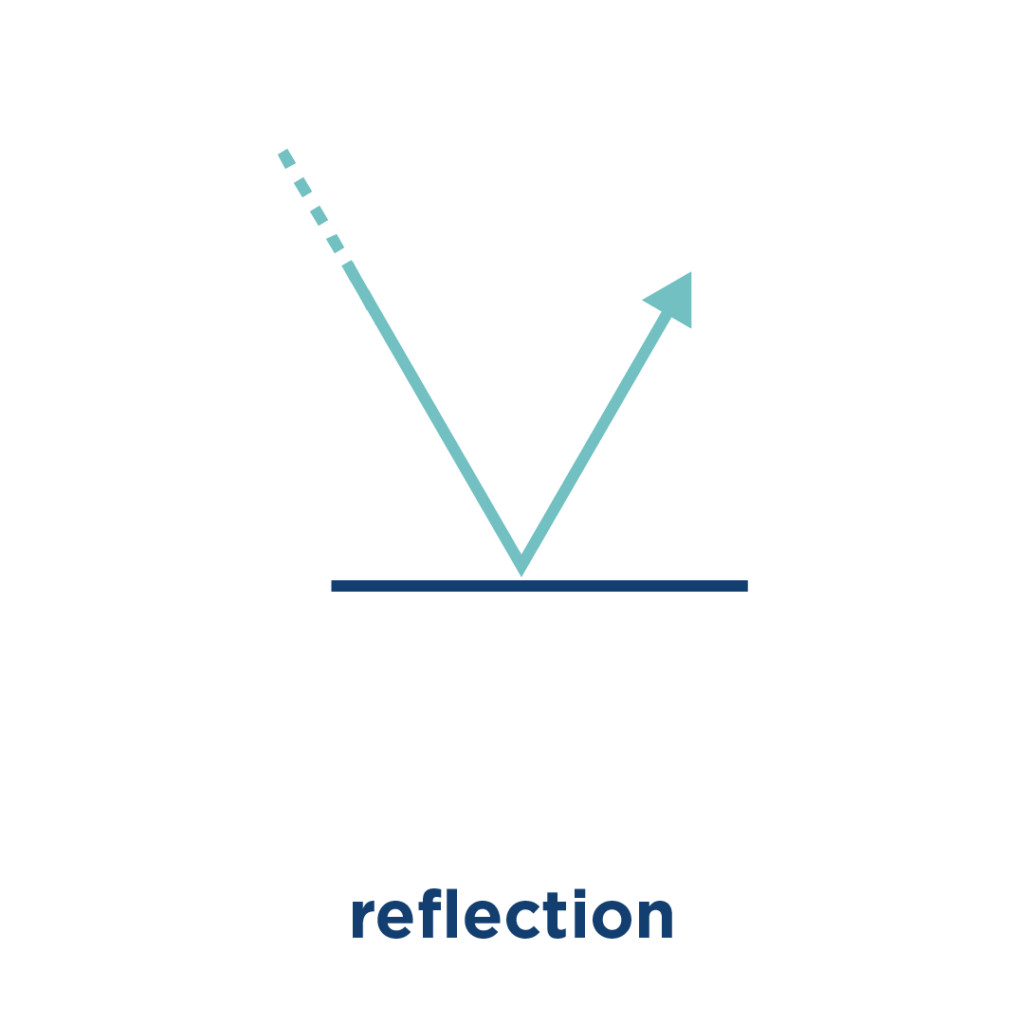

Reflection: In a closed environment with hard, flat surfaces like walls, floors, and ceilings, sound waves can bounce off these surfaces, as noted with the angle of incidence equals the angle of reflection. IT must be worth noting, at this point, that scattering will also occur (covered below) within most real-world examples, but let’s stick with reflection for a moment as this covers a number of key attributes of concert hall acoustic design.
The primary attribute we are interested in terms of straight forward angle-of-incidence-equals-angle-of-reflection reflections is the “First Reflection.” This is the second sound which a subject listener will hear past that directly from the source (our band, or a loudspeaker). The first thing they hear will be the “Direct Sound,” which has travelled the shortest path. The second, will be the “first reflection” – the sound which has taken the 2nd shortest route. This may be sound which has reflected from a wall to the listener, or from a balcony ceiling. IF this sound is too loud compared to the direct sound, it will be heard as an echo.

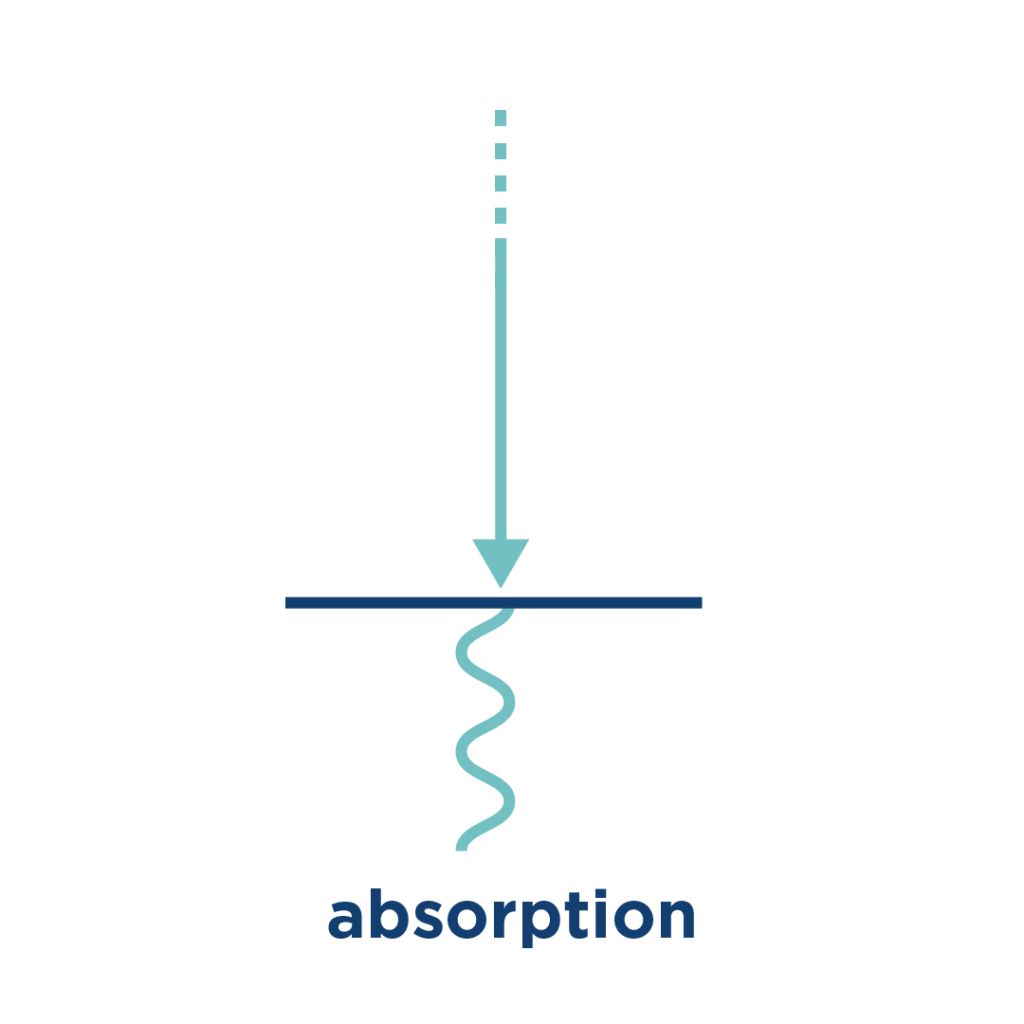

Absorption: Energy from sound waves is absorbed by the materials and space it encounters, this can be leveraged into a design to optimise sound quality. For example, soft materials such as curtains can absorb high frequency sounds, dampening the sound to create a ‘quieter’ sound or prevent sound travelling. For lower frequencies, strategies such as resonant absorbers can be used to reduce the energy of sound waves.
Absorption reduces sound energy and prevents excessive echoes and reverberation.
Materials with high absorption coefficients are particularly effective at absorbing sound energy. For example, wadding used within acoustic baffles, or thick drapery used to reduce reflections in large arenas.

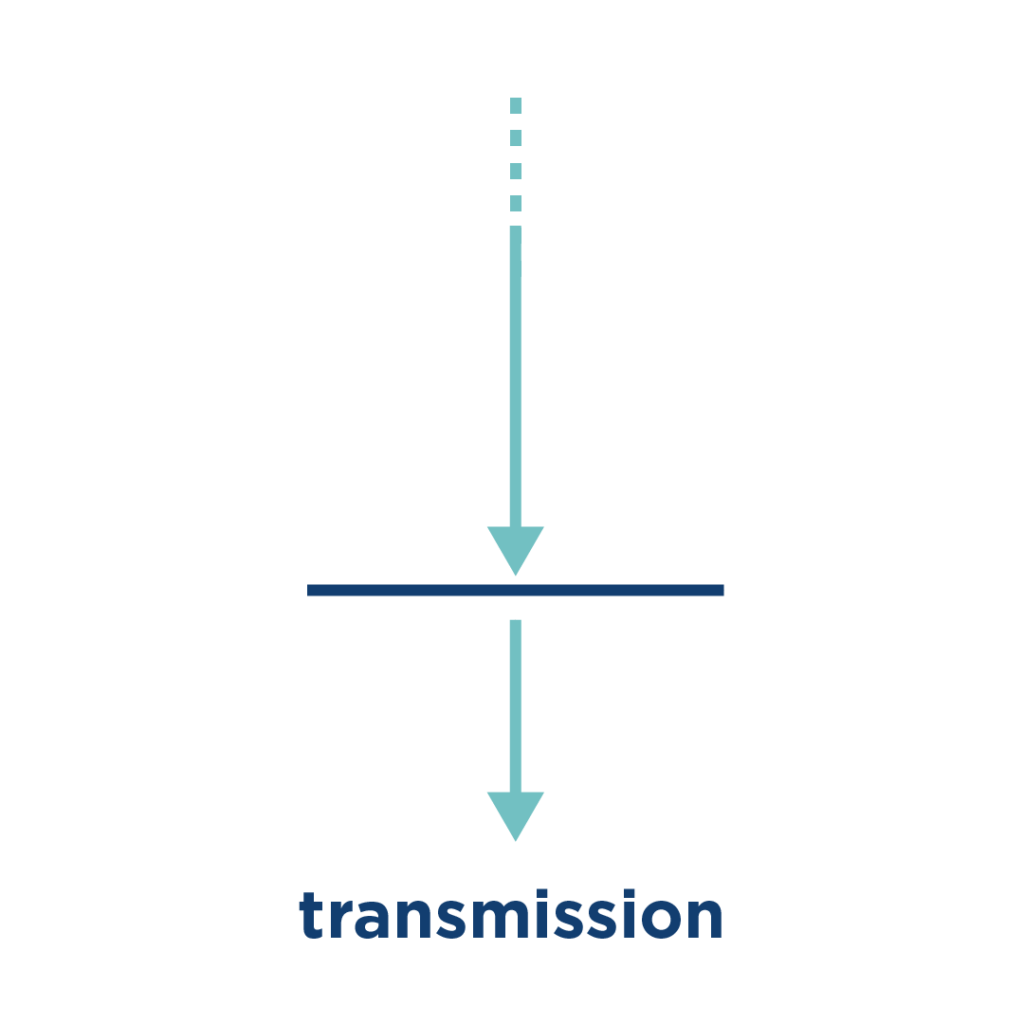

Transmission: When sound waves encounter a barrier like a wall, some of the energy may be transmitted through the barrier, by causing sound waves within the medium of the wall itself. The amount of sound transmitted depends on the barrier’s thickness, density, and composition.
Special soundproofing materials and building design can be used to minimize sound transmission between different areas (sound spillage). These materials will have properties to either absorb sound or be hard to energise and propagate sound waves within.

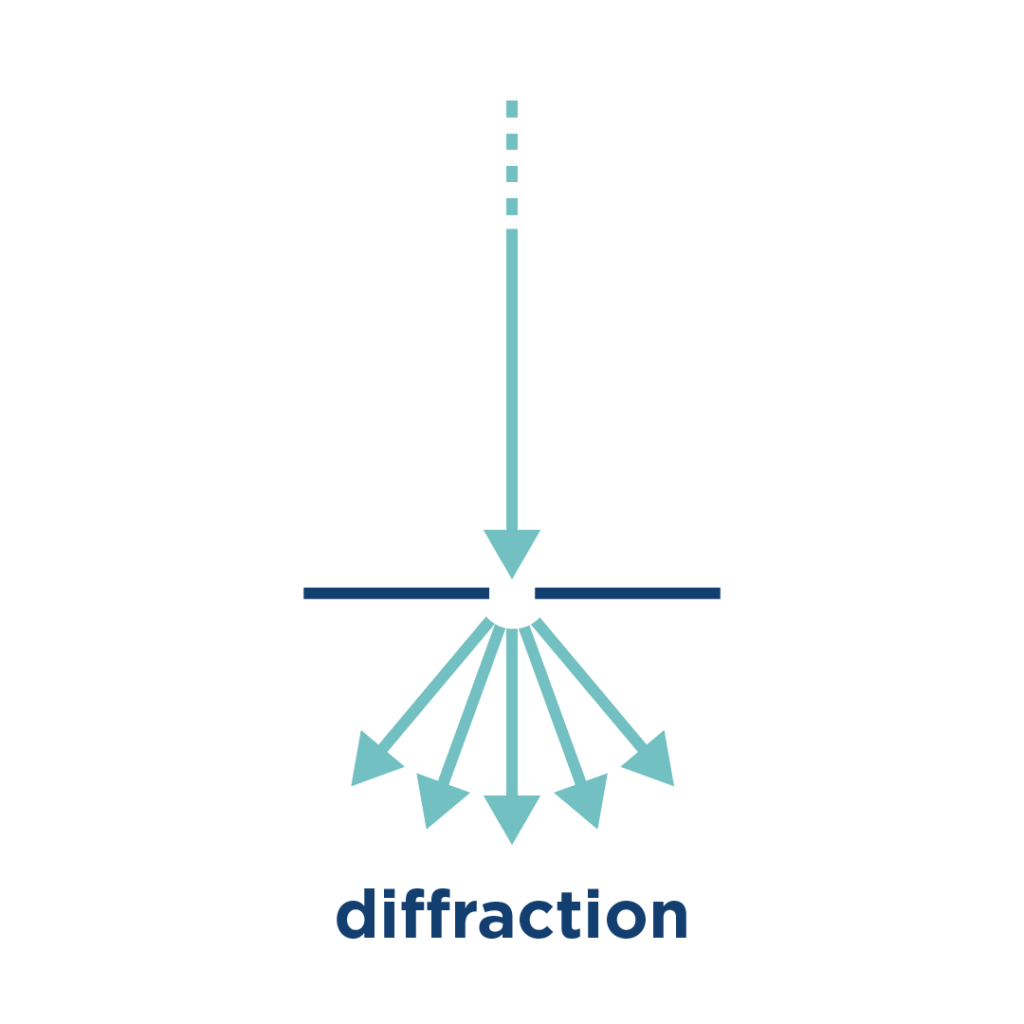

Diffraction: Sound waves can bend around obstacles in their path, a phenomenon known as diffraction.
The extent of diffraction depends on the wavelength of the sound wave relative to the size of the obstacle.
Lower-frequency sounds, which have longer wavelengths, tend to diffract more effectively than higher-frequency sounds.

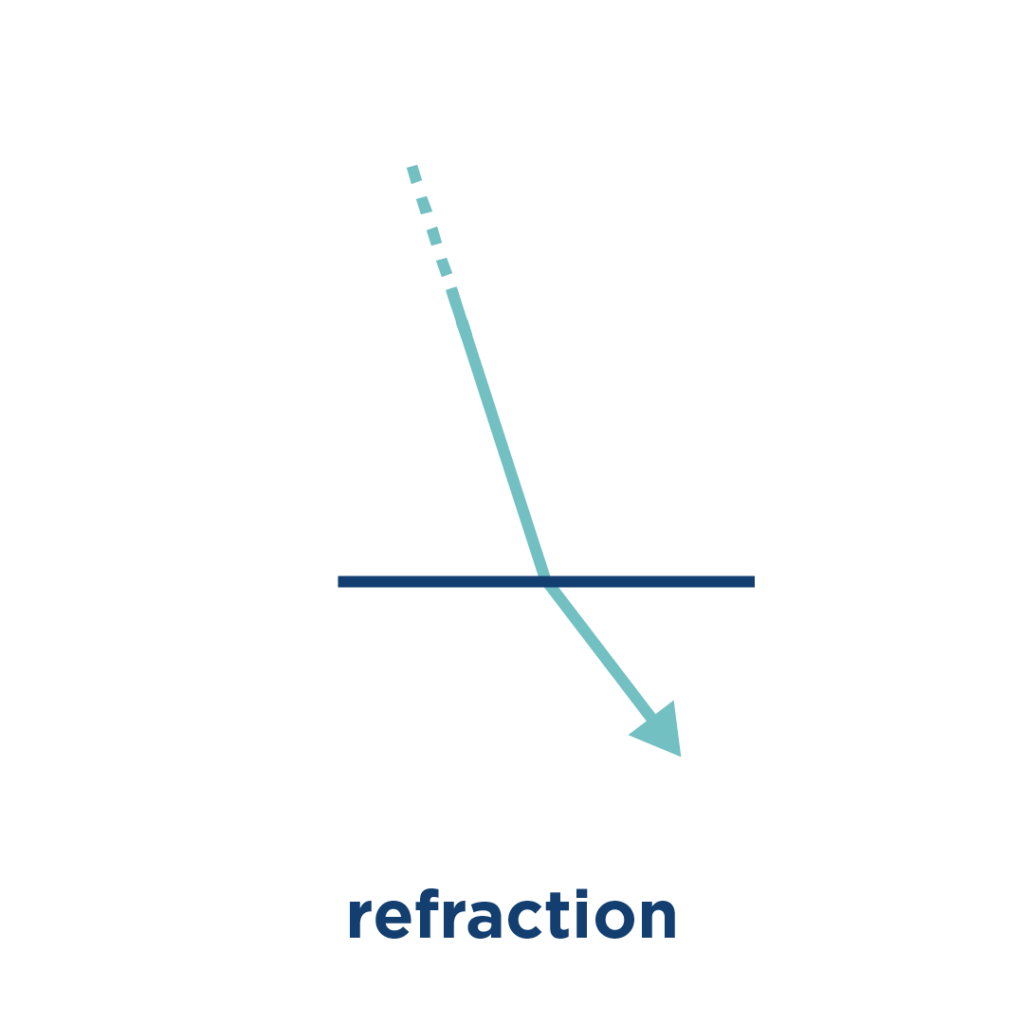

Refraction: Sound waves can change direction when they pass through spaces with varying temperatures or air densities, leading to refraction of the sound waves.
Refraction can result in sound waves bending towards areas with different acoustic properties, causing sound to travel in unexpected directions.
Refraction can occur around tight openings within spaces, such as sound passing through a doorway.
Atmospheric Conditions: Sound propagation is affected by atmospheric conditions such as temperature, humidity, and wind.
Humidity can affect sound speed and attenuation, impacting how far sound travels.

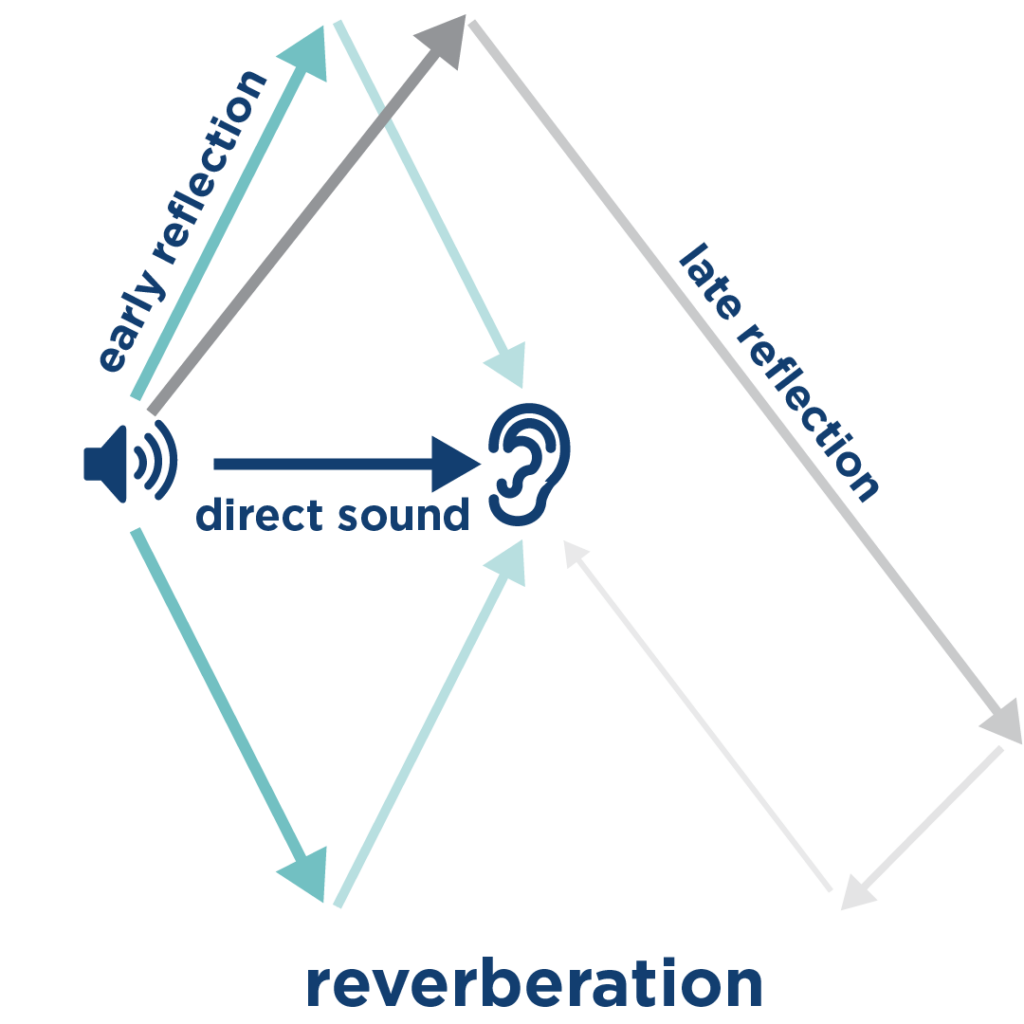

Reverberation: As discussed within reflection, a series of different pathways can be taken by a single sound. Whether this is a straightforward reflection or scattering of sound.
These sound waves will continue to “bounce” around the room (assuming it is a sealed room, rather than outside space), until these waves have run out of energy, by either passing into different mediums such as walls, people, or specialist acoustic absorbers.
Until these sound waves have run out of energy, beyond the range of human hearing, we will hear these sounds as a “Reverberation” in the room. This is very closely aligned with the principles of first/second reflections but is instead measured in a much more statistical manner. The most common measurement to take is the time from when the first direct sound is heard, to the point at which the reflected sound is 60dB less than this. This is commonly referred to as the RT60 time.
Foundations of Concert Hall Acoustic Design: Summary
In summary, sound behaves differently in various environments due to interactions with surfaces, materials, atmospheric conditions, and the characteristics of the medium through which it travels. Understanding these behaviours is crucial for various applications, including acoustical design, noise control, and communication. Concert halls require design that marry all the various principles of acoustic design.
The Science Behind Concert Hall Acoustic Design
Core Principles of Concert Hall Acoustic Design
The science underpinning concert hall acoustic design combines measurable acoustic behaviour with perceptual experience. Concert Halls are rarely built to accommodate the scope of modern performances; indeed, many concert halls are within historic buildings which bring a host of additional issues to consider. While historic concert halls certainly have many of the acoustic properties needed for sound to propagate within the space, modern tech means acoustic design can enhance the audio experience for guests and overcome obstacles in building design. Many traditional concert halls have also been adapted to accommodate flexible space usage (removing chairs, adding additional layers of seating) which the space was not intended to cope with.
Concert hall acoustic design is a complex and interdisciplinary subject that combines principles from physics, engineering, architecture, and psychology. Let’s explore some of the key considerations of acoustic design for such demanding performance spaces.

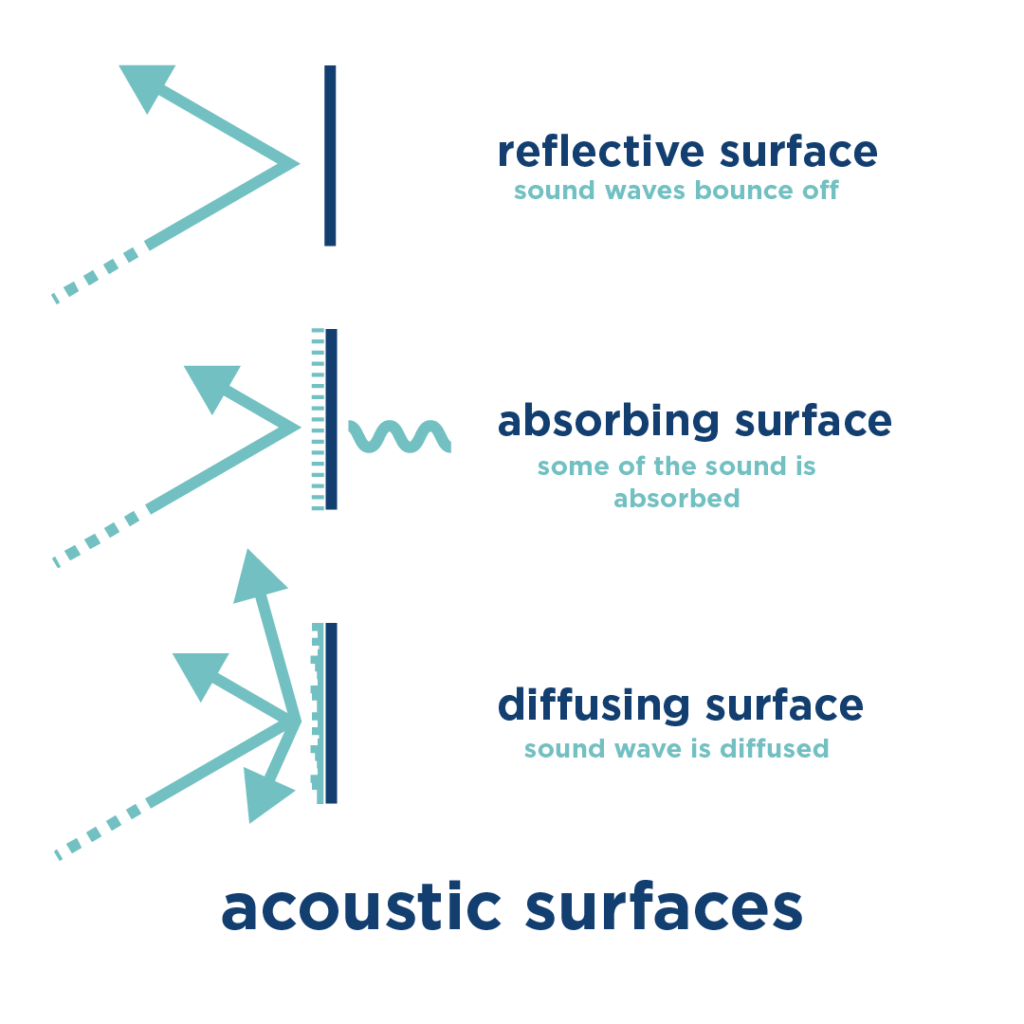

Concert Hall Acoustic Design: Reflection, absorption and diffusion.
Sound waves travel through the air and interact with the surfaces they encounter in a concert hall. Reflection occurs when sound waves bounce off surfaces, absorption happens when sound energy is absorbed by materials (like curtains or acoustic panels), and diffusion involves scattering sound waves in multiple directions to create a more balanced acoustic environment.
One of the critical aspects of concert hall acoustics is the control of reverberation. Reverberation is the persistence of sound in a space after the source has stopped producing sound. It contributes to the richness and fullness of music but must be carefully controlled to avoid excessive blurring of sound. The duration and character of reverberation are influenced by the hall’s size, shape, and materials.
Early reflections: these are the first sound reflections that reach the listener’s ears directly from surfaces like walls, ceiling, and floor. Proper management of early reflections helps create a sense of spaciousness and envelopment in the sound, enhancing the listener’s experience.
Sound Diffusion: Concert halls often incorporate specially designed diffusers, which scatter sound in various directions. This helps prevent the formation of strong echoes and ensures that the sound reaches all parts of the audience, including those in the rear seats.
Sound Absorption: To control excessive reverberation and improve sound clarity, concert halls use materials that absorb sound energy. These materials, such as curtains, acoustic panels, and specialized wall and ceiling treatments, are strategically placed to achieve the desired acoustic characteristics.

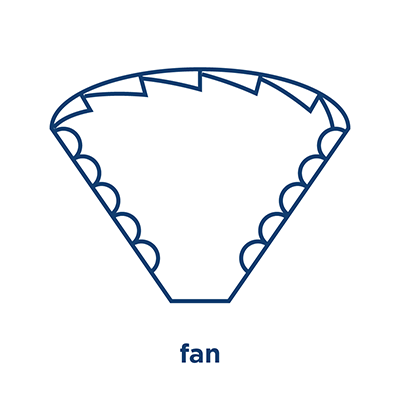

Shape, Geometry and Layout in Relation to Concert Hall Acoustic Design

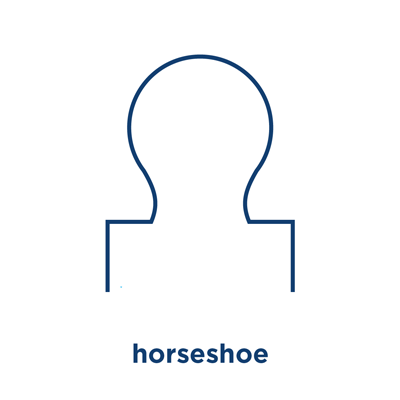

The shape and geometry of a concert hall play a crucial role in its acoustics. Different shapes, and there are a number of common room shapes, such as shoebox, fan-shaped, or vineyard, have unique acoustic properties that affect how sound travels and interacts with the audience.
Orchestra and Stage Placement: The placement of the orchestra and stage area within the hall is vital for achieving balanced sound. The size and layout of the stage, as well as the position of musicians, impact how sound reaches the audience.
Audience Seating: The arrangement of seating also affects the acoustics. Proper audience seating design ensures that all listeners can experience the same sound quality, regardless of their location in the hall.
Computer Modelling & Acoustic Simulation in Concert Halls
Modern technology allows acousticians and architects to use computer modelling and simulation tools to predict and fine-tune the acoustic properties of a concert hall before construction begins. This helps optimize the hall’s design for specific types of music and performances.

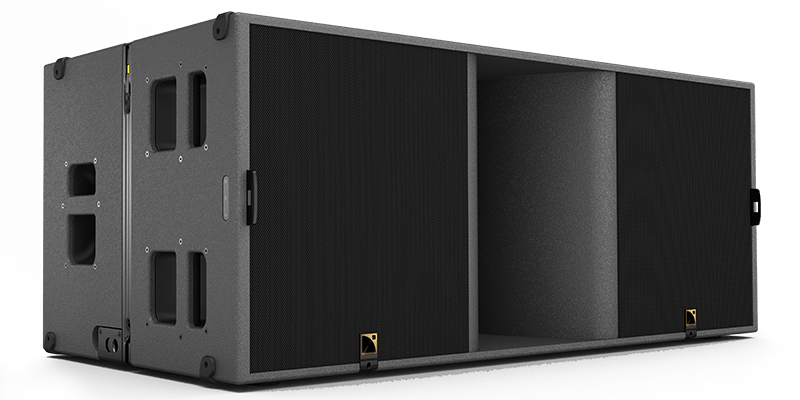

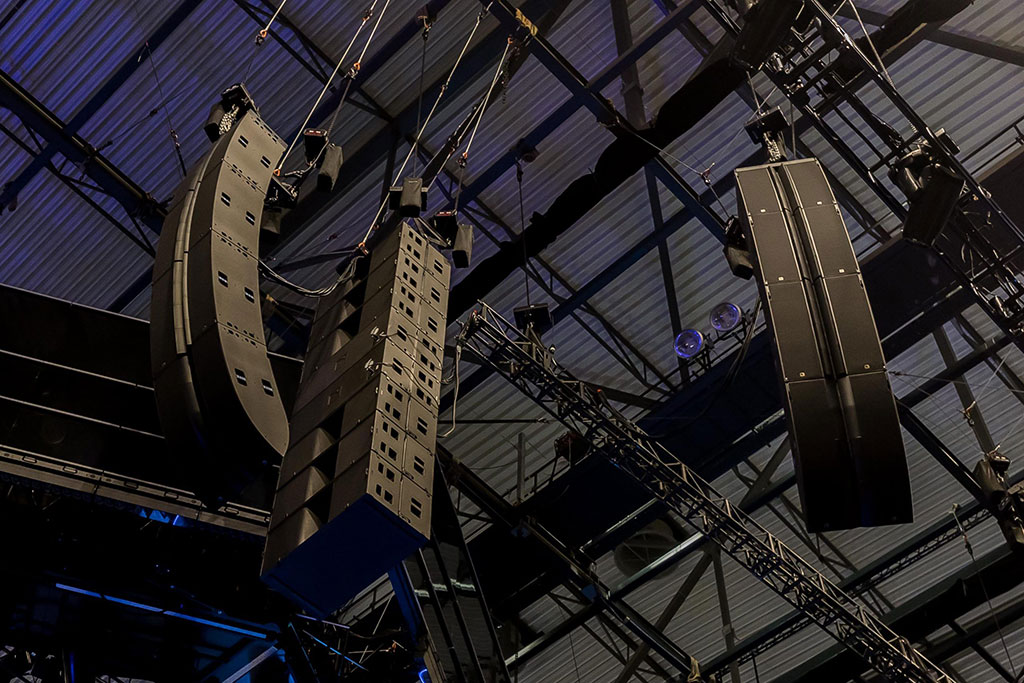

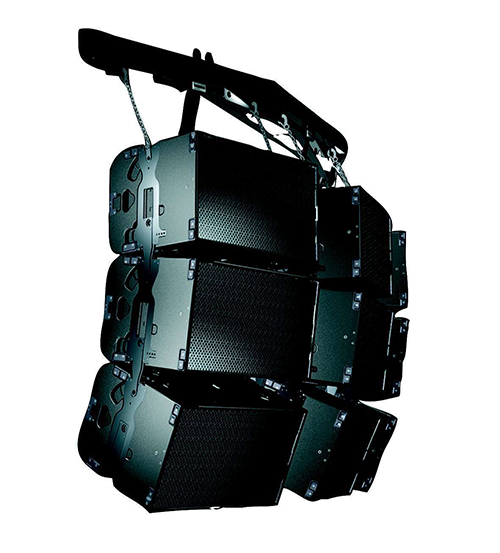

Sound System Design in Concert Halls

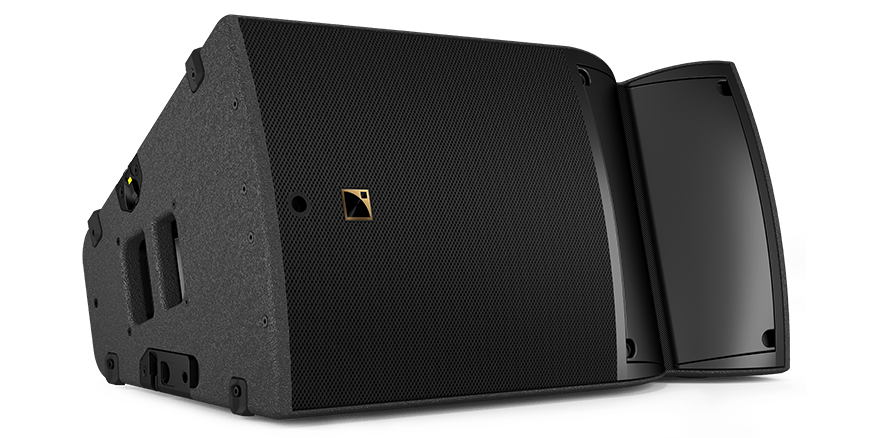

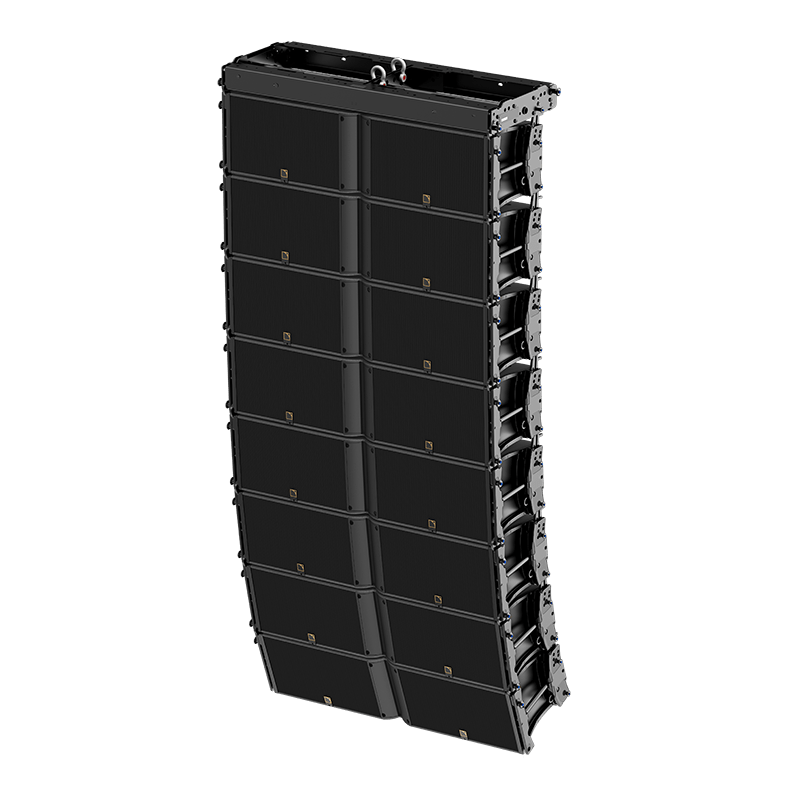

It is also possible to modify the acoustic of the concert hall using electronic techniques. For example, to increase reverberation within a space different music type will also require different amounts of electrical sound reinforcement. In a classical setting this may limited, whereas a rock band will require a full public address system. Where sound reinforced music is taking place within a classical setting, we must be aware of the higher reverberation times that a classic music hall has and therefore be careful of the characteristics of design system.
User Interface & System Control Design in Concert Hall Acoustic Design
Given that concert halls accommodate a wide range of performance types, it makes sense that a wide range of sound technicians will need to access and use the various audio systems. Some venues have in-house sound and light engineers, but many performers have their own team as they know the running order and audio demands of the show. With this in mind, it’s always important to consider how accessible the sound systems are is for travelling engineers. An obscure, difficult to navigate system will create many issues that could compromise the overall audio design. Using superior quality, universally understood tech is a critical component. There’s no point designing an audio system nobody can drive.
In summary, the science of acoustics in concert halls involves a careful balance of design, materials, and engineering to create an environment that enhances the musical experience for both performers and the audience. Concert hall acousticians aim to achieve a harmonious and immersive sound environment that complements the music being performed while considering the unique architectural and functional aspects of each venue.
Visual Surfaces as Acoustic Variables in Concert Hall Acoustic Design
In modern concert halls, visual systems increasingly form part of the architectural fabric of the space. Large-format displays, projection surfaces, and other visual elements should be understood not only as presentation tools, but also as physical surfaces that influence acoustic behaviour and audience perception.
From a purely physical standpoint, visual surfaces can introduce highly reflective materials into areas that would traditionally be treated for diffusion or absorption. Poorly considered placement may interfere with early reflection paths, alter reverberation characteristics, or introduce unintended specular reflections that affect clarity.
Beyond their physical impact, visual elements also influence how audiences perceive sound. Visual cues can affect perceived sound localisation, timing, and spatial coherence. When visual content is misaligned with acoustic sources, the audience’s perception of clarity and realism can be compromised. Even if the audio system itself is technically well designed.
For these reasons, visual systems must be considered as part of the broader acoustic environment. Successful concert hall design treats visual elements as contextual acoustic variables, ensuring they support rather than disrupt the intended sound experience.
Integrating Visual Elements Within Concert Hall Acoustic Design
In performance environments where visual systems form part of the architectural fabric, their impact on acoustic behaviour must be considered from the earliest design stages. Large-format displays, projection surfaces, and structural visual elements introduce physical and perceptual variables that can influence reflection paths, reverberation characteristics, and perceived sound localisation.
Designers should therefore evaluate visual elements using the same critical framework applied to other architectural surfaces, ensuring that visual integration supports rather than compromises acoustic intent.
Related guidance: Visual integration in performance environments, including architectural surfaces, display technologies, and system coordination.
The Science Behind Concert Hall Acoustic Design: Summary
The science of concert hall acoustic design requires a careful balance of architectural design, material selection, and engineering judgement. By managing reflections, absorption, diffusion, and system design (while accounting for both physical and perceptual factors) acousticians aim to create immersive sound environments that enhance performances for both audiences and performers. Each venue presents a unique set of challenges, requiring solutions that respect its architectural, functional, and experiential context.
Performance-Led Concert Hall Acoustic Design
Performance requirements are one of the defining variables in concert hall acoustic design, directly influencing reverberation strategy, system architecture, and reinforcement approach.
The type of performance a concert hall was originally designed to support has a significant influence on its acoustic characteristics. For example, a hall designed primarily for classical music will typically feature a longer reverberation time than a venue intended for contemporary amplified performances, reflecting the desired richness and blend of orchestral sound.
Modern venues are increasingly expected to support a wide range of performance types. As a result, many concert halls now employ adaptable acoustic strategies, both physical and electronic, to accommodate differing requirements. These strategies may include variable acoustic treatments, adjustable reverberation systems, or spatial sound technologies that allow the acoustic response of a space to be shaped according to the performance.
Designing for multiple performance types requires a clear understanding of how acoustic parameters interact with both the music being presented and the audience’s perceptual expectations.

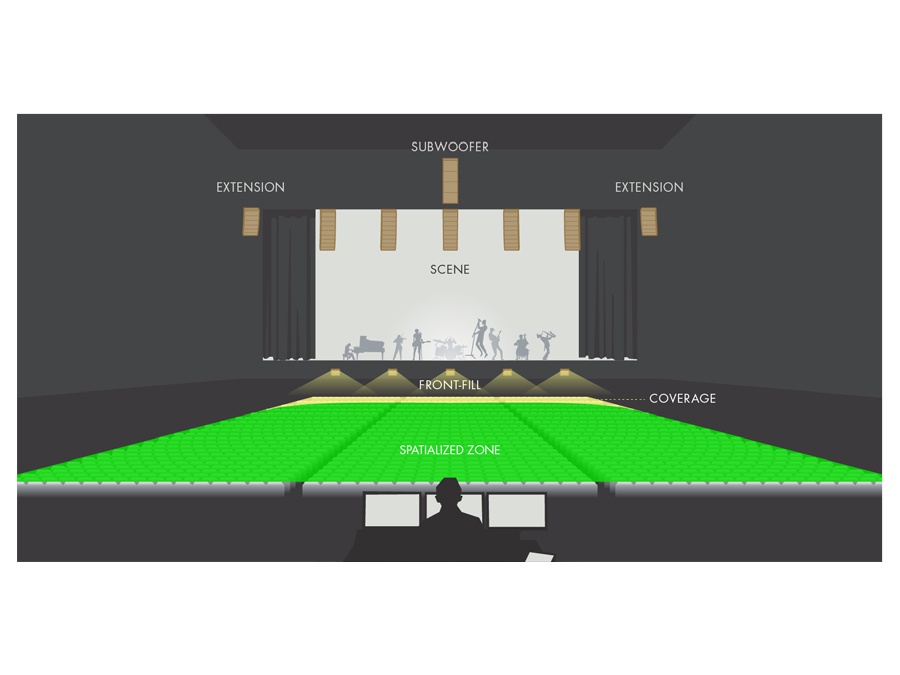

The L-Acoustics L-ISA system is an example of this approach, using object-based spatial reinforcement to support accurate localisation, improve clarity, and maintain a perceptual connection between performers and audience across a range of seating positions.
Measuring Acoustic Properties in Concert Halls
Measuring acoustic properties in a room or space is crucial for understanding and optimizing its sound characteristics. Acoustic properties primarily include reverb time, reflection, and absorption. Let’s explore each of these properties in more detail and how they are measured:

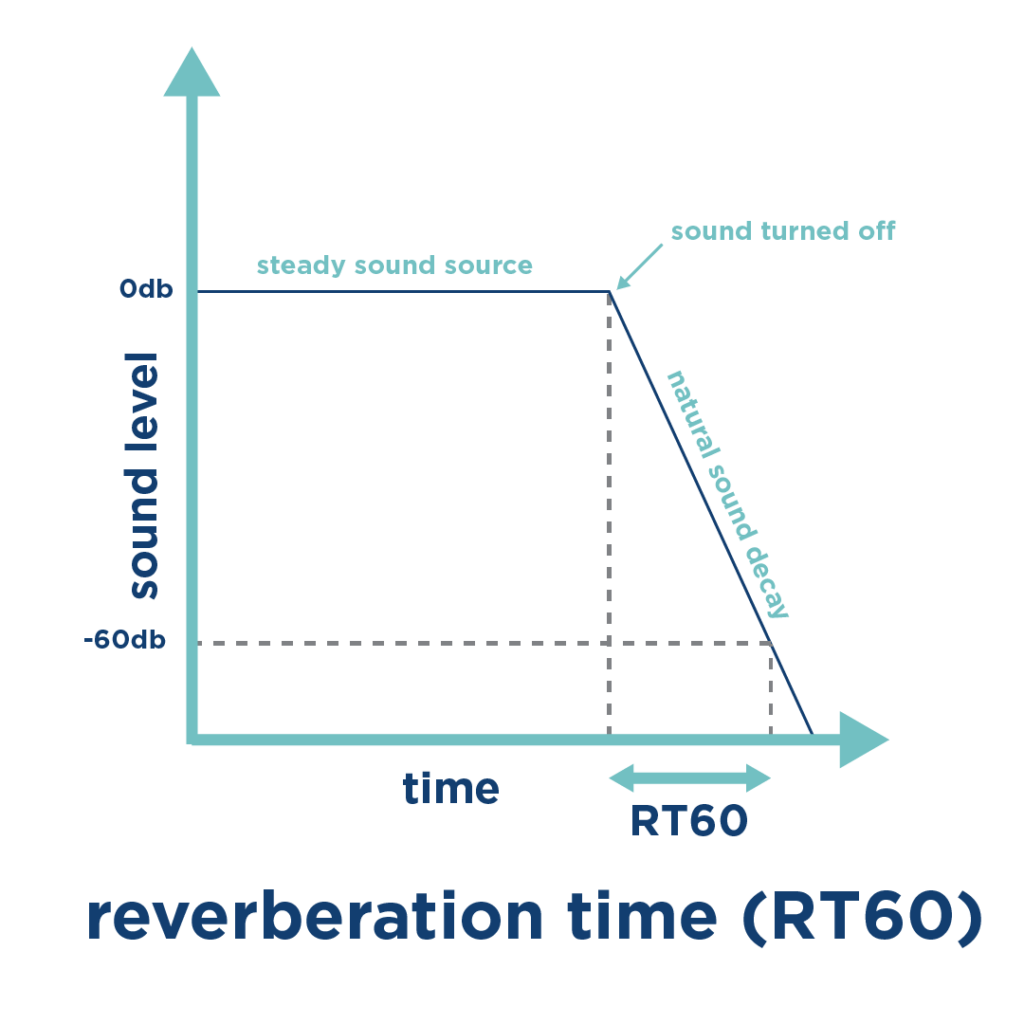

Reverberation time (RT60): reverb is often measured as RT60. This would be the measure of the time it takes for a sound to decay by 60 dB (other measurements such as RT30 could be used) after the sound source has stopped. In simple terms, it quantifies how long it takes for a sound to fade away in a room.
Measurement: The most common method for measuring RT60 is the impulse response method. A loud sound, like a balloon pop, or a starter pistol shot, is produced in the room, and the decay of sound is recorded using a microphone.
RT60 is then calculated by analysing the decay curve of the recorded sound. It’s often measured at various frequencies to get a better understanding of a room’s acoustic behaviour across the frequency spectrum.
Reflection: This refers to the way sound waves bounce off surfaces in a room. It’s essential to understand how sound reflects off walls, ceilings, and floors to design spaces with desired acoustic characteristics.

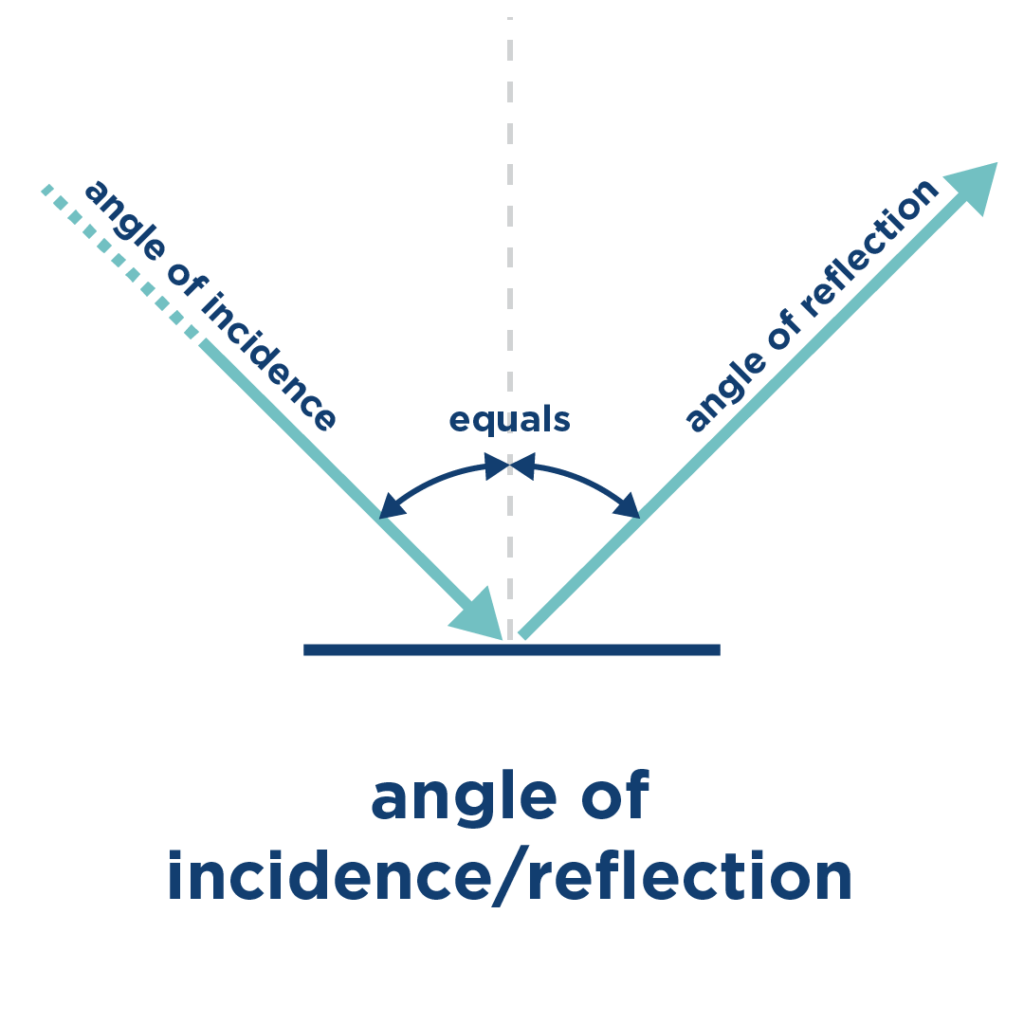

Measurement: The measurement of reflection involves analysing the angle of incidence and the angle of reflection of sound waves. This is only commonly possible within a laboratory setting which would allow measurements to be taken of materials to be used or future simulations.
Acoustic Modelling in Concert Hall Acoustic Design
Acoustic modelling software allows engineers and architects to simulate how sound interacts with architectural features and materials. These tools are invaluable for predicting reflection paths, reverberation behaviour, and coverage patterns, particularly in venues designed to host multiple performance formats.
Absorption: This occurs when sound energy is converted into heat as it interacts with materials. Effective absorption is essential for controlling reverberation and reducing excessive reflections that can compromise clarity.
Measurement:

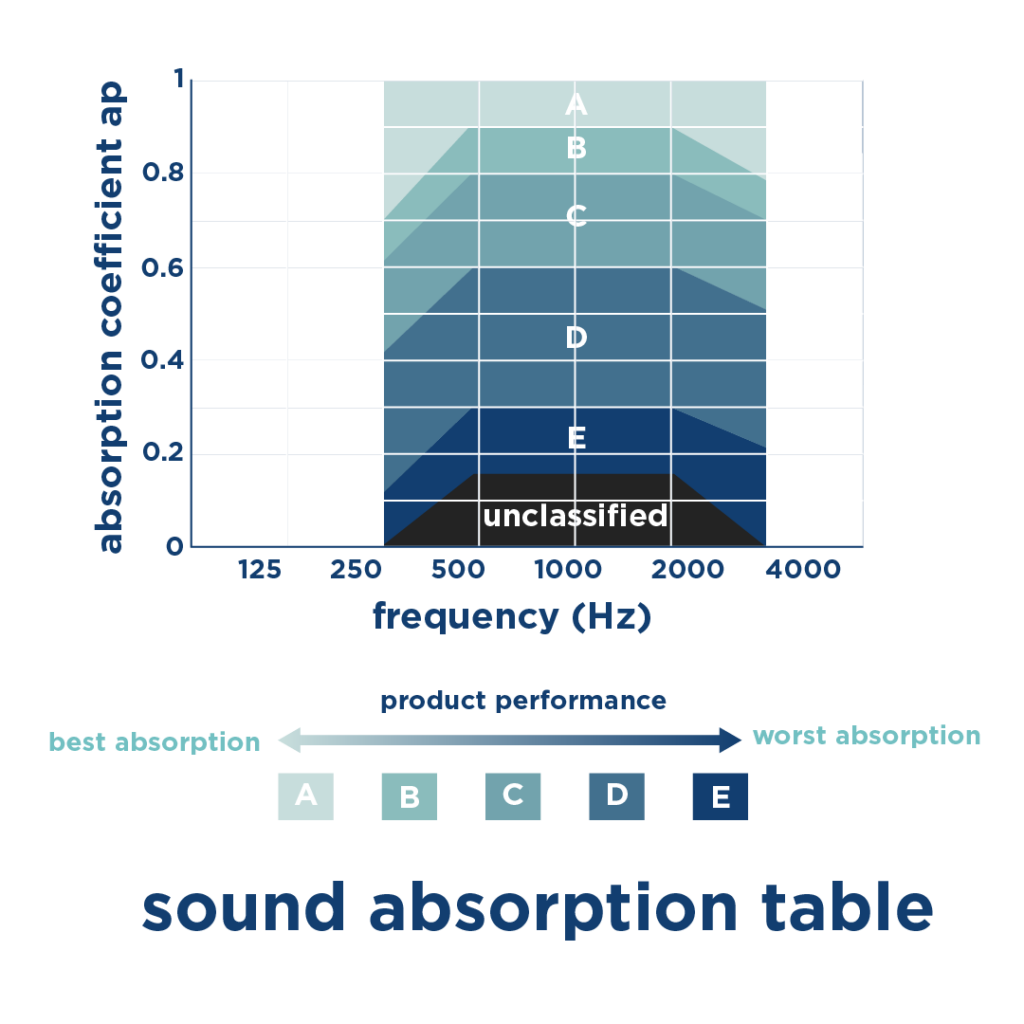

The absorption coefficient (α) is used to quantify how much sound energy a material absorbs. It is a value between 0 (perfect reflection) and 1 (perfect absorption).
To measure absorption, a sample of the material is exposed to sound waves of known intensity and frequency. The difference in sound energy before and after interaction with the material is used to calculate the absorption coefficient.
Measurements are often taken at multiple frequencies to determine how well the material absorbs sound across the spectrum.
These measurements and properties are critical for various applications, including architectural design, concert hall acoustics, home theatre design, and noise control in industrial settings. By understanding and manipulating reverb time, reflection, and absorption, one can optimize the acoustic characteristics of a space to achieve the desired sound quality and functionality. Generally, sound absorption is measured within a laboratory setting, and computer simulations are used in situ to assess the design.
Performance-Specific Acoustic and Visual Considerations
While the acoustic requirements of performance spaces are well established, modern concert halls must also consider how visual elements interact with sound perception. These considerations vary significantly by performance type.
Classical music: generally, these performances prioritise natural acoustics, spatial coherence, and tonal balance. Visual intervention is typically minimal, as excessive visual presence can distract from the acoustic authenticity of the performance. Where visual elements are introduced, they must be carefully integrated to avoid introducing reflective surfaces that disrupt early reflections or reverberation patterns.
Spoken Word: For spoken word, intelligibility is paramount. Visual reinforcement, such as captioning or close-up imagery, can significantly aid comprehension, particularly in large venues. In these contexts, alignment between audio and visual timing is critical. Latency between speech and visual cues can undermine clarity and increase cognitive load for the audience.
Contemporary Music: whether it’s rock or folk, these performers often rely on strong visual rhythm to reinforce sonic impact. Visual movement and dynamic content can enhance perceived energy when tightly synchronised with audio dynamics. However, excessive, or poorly coordinated visuals can overwhelm the audience and reduce perceived clarity, even when the sound system is performing correctly.
These examples highlight the importance of understanding when visual elements support the performance and when they risk undermining it. Effective acoustic design recognises that performance type dictates not only sound characteristics, but also the appropriate role of visual systems within the space.
Performance-Led Concert Hall Acoustic Design: Summary
Understanding the impact of performance type on acoustic design is essential for creating versatile and effective concert halls. By measuring and controlling reverberation, reflection, and absorption, designers can optimise spaces for a wide range of applications. In modern venues, this process also involves recognising how visual elements influence perception and intelligibility. When acoustic principles are applied with sensitivity to performance context, the result is a space that supports both artistic intent and audience experience.
Performance Type vs Acoustic Priorities vs Visual Risk in concert hall acoustic design
Performance Type | Primary Acoustic Priorities | Typical Reverberation Profile | Role of Visual Elements | Key Integration Risks |
Classical Music | Natural reverberation, spatial coherence, tonal balance | Longer RT60, frequency-dependent decay | Minimal and restrained; visuals should not dominate the performance | Reflective visual surfaces disrupting early reflections; perceptual conflict between visible source and perceived sound location |
Spoken Word | Intelligibility, clarity, temporal accuracy | Shorter RT60, controlled reflections | Visuals support comprehension (captioning, sightlines, close imagery) | Audio–visual latency; misaligned captions; increased cognitive load |
Rock & Contemporary | Impact, power, consistency across the audience | Shorter RT60 with electronic control | Visual rhythm reinforces sonic dynamics | Visual overload masking clarity; poor synchronisation reducing perceived precision |
Musical Theatre | Balance between speech and music; localisation | Moderate RT60, adaptable response | Visuals support narrative and spatial context | Latency between performers and visuals; loss of localisation when amplified |
Multi-use Performance | Flexibility and repeatability | Variable, electronically assisted | Context-dependent; must adapt to programme | Systems becoming over-complex or operator-dependent |
Architectural Influence on Concert Hall Acoustic Design
The architecture of a concert hall plays a decisive role in shaping the sound quality experienced by both performers and audiences. A well-designed space can enhance clarity, balance, and emotional impact, allowing music and speech to be heard as the composer and performers intended. Conversely, a poorly designed hall can muddy sound or introduce unwanted echoes and resonances. Here are some of the primary ways in which concert hall architecture affects sound quality:
Concert hall acoustic design requires a holistic approach, recognising that architectural form, materials, and spatial planning directly influence how sound propagates and is perceived within the space.
- Volume and Size: The overall volume and size of a concert hall affect how sound waves propagate and dissipate. Larger halls require careful acoustic planning to ensure sound reaches all audience areas with sufficient clarity and energy. As volume increases, the time taken for early reflections to arrive also increases, and, depending on surface materials, longer reverberation times may result.
- Shape: The shape of a hall influences how sound travels and interacts with architectural surfaces. Certain geometries allow a greater proportion of the audience to receive strong direct sound, while others rely more heavily on reflected sound to achieve coverage. In venues where geometry limits direct sound paths, electronic reinforcement may be required to restore clarity and consistency.
- Materials: The materials used in a concert hall’s construction (walls, ceilings, floors, and seating) have a significant impact on sound quality. Hard materials such as stone, glass, or timber tend to reflect sound, while softer materials such as fabrics and acoustic panels absorb sound energy. Effective acoustic design balances reflective and absorptive materials to create a rich sound field without excessive reverberation or acoustic “deadness.” Material selection is therefore both an acoustic and architectural decision.
- Reverberation Time: this describes how long sound energy persists within a hall after the source has stopped. Longer reverberation times are often desirable for orchestral music, where blend and sustain enhance the listening experience, but can be detrimental to speech or amplified performances. Architectural decisions relating to volume, materials, and surface treatment all contribute to the resulting reverberation profile.
- Reflective & Diffusive Surfaces: Architectural elements such as balconies, sculpted ceilings, and articulated wall panels can be designed to reflect and diffuse sound in controlled ways. When carefully implemented, these features help distribute sound evenly across the audience and reduce the formation of acoustic “hot” or “dead” spots within the space.
- Adjustable Acoustics: Many contemporary concert halls incorporate adjustable acoustic features, including movable panels, curtains, or banners. These systems allow the acoustic response of the space to be adapted to suit different performance types, supporting versatility without compromising sound quality.
- Noise Isolation: Good concert hall design will always consider external noise sources, such as traffic, construction, or other urban sounds. This involves the use of thick walls, specialized doors, and sometimes even “floating” architectural elements to ensure that external noises don’t disturb the purity of the sound inside.
- Audience Size & Occupancy: It’s worth noting that the audience itself plays a role in a hall’s acoustics. A filled hall absorbs more sound than an empty one, so architects and acousticians often design with a full audience in mind. Many architects choose seating designs where an unused seat is similar acoustically to a person.
- Bass Response: The architecture of the hall affects the clarity and richness of lower frequencies. Bass sounds can become muddy or boomy if not addressed in the design phase.
The interplay between these elements requires careful consideration and often involves collaboration between architects, acousticians, and sometimes the performers themselves. The goal is to create a space where sound can be heard naturally, without the need for excessive amplification or electronic enhancement. When done right, a concert hall becomes an instrument, complementing and elevating the performance.
Architectural Integration of Visual Systems & their impact on concert hall acoustic design
In modern concert halls, visual systems are increasingly integrated into the architectural fabric of the space. Large-format displays, projection surfaces, and other visual elements should be considered architectural materials rather than standalone additions.
From an acoustic perspective, these elements introduce new surface characteristics that can significantly alter reflection, absorption, and diffusion patterns. Large reflective visual surfaces, if introduced without planning, may disrupt early reflection paths or compromise carefully tuned reverberation behaviour.
Architectural integration is therefore critical. Visual systems that are structurally embedded within the design of the hall can be acoustically managed more effectively than those added retrospectively. Early collaboration between architects, acousticians, and system designers allows visual elements to be positioned, treated, or shaped in ways that preserve acoustic intent.
Long-term considerations are equally important. Maintenance, replacement, and future upgrades must be planned so that changes to visual infrastructure do not inadvertently alter the acoustic characteristics of the space over time.
Integrated Design Considerations in Concert Hall Acoustic Design
The successful integration of visual systems within concert halls depends on early collaboration between architects, acousticians, and system designers. When visual infrastructure is treated as a structural and material consideration rather than a later addition, its acoustic impact can be managed predictably and sustainably.
This integrated approach reduces long-term risk, preserves acoustic consistency, and ensures that future upgrades or replacements do not unintentionally alter the sound behaviour of the space.
Related guidance: Architectural integration of visual systems within performance-led venue design.
Architectural Influence on Concert Hall Acoustic Design: Summary
The architectural impact on sound properties extends far beyond aesthetics. Volume, shape, materials, and structural elements all interact to define how sound behaves within a concert hall. Achieving optimal results requires close collaboration between architects, acousticians, and engineers to ensure that architectural intent and acoustic performance are aligned.
When successfully integrated, a concert hall becomes an instrument in its own right. One that supports natural sound, accommodates a range of performances, and enhances the connection between performers and audience.
Architectural Style and Its Impact on Concert Hall Acoustics
Architectural Style and Sound Properties
Architectural style has always played a defining role in how sound is experienced within built environments. Far from being purely visual expressions of culture, technology, or ideology, architectural styles also act as acoustic frameworks, shaping how sound is projected, reflected, absorbed, and perceived.
Architectural style shapes not only aesthetics, but the practical constraints and opportunities within concert hall acoustic design. When designing spaces, architects and acousticians (should) collaborate to ensure that the acoustics are suited to the intended purpose of the building. Whether it’s a concert hall, a church, an office space, or a home, the architectural style and acoustic properties need to harmonize to ensure optimal user experience.
Acoustic Characteristics of Architectural Styles
Different architectural movements have introduced distinct spatial forms, materials, and construction methods, each with their own acoustic implications. Understanding these characteristics is essential when designing, adapting, or upgrading performance venues across different eras.

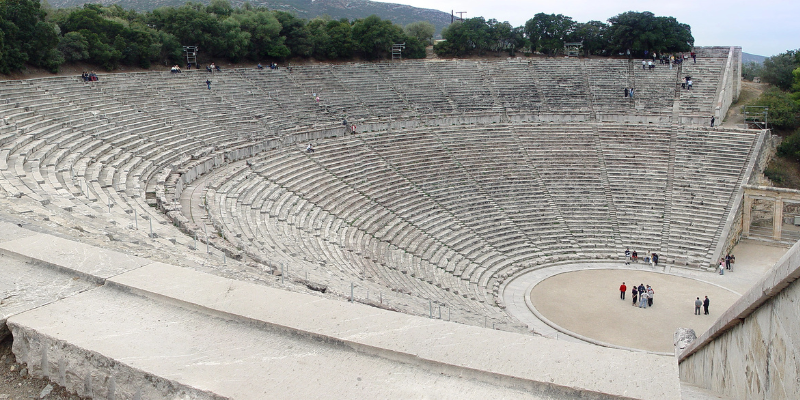

Ancient Greek/Roman: Classical (Greek and Roman) architecture is renowned for its enduring impact on architectural design and has left an indelible mark on the world of acoustics.
This architectural style, characterized by features such as amphitheatres, stone construction, grand pillars, and expansive open spaces, were not only aesthetically magnificent but ingeniously designed to enhance acoustics.
One of the most iconic features of classical architecture, particularly in the case of amphitheatres, was their acute consideration for sound clarity. The semi-circular design of amphitheatres, exemplified by structures like the Roman Colosseum, was ingeniously engineered to prioritize the projection and amplification of sound towards the audience.
This design had a profound impact on the way sound waves travelled within these spaces. Sound produced on the stage or arena would be channelled towards the audience, creating an immersive auditory experience. This design innovation ensured that even those seated in the highest tiers could hear speeches, music, or dramatic performances with remarkable clarity. The use of stone as a primary construction material further contributed to the reflective and resonant properties of these spaces, enhancing their acoustic qualities.
The grand pillars that adorned classical architectural spaces, acted as acoustic enhancers. Sound waves interact with the pillars, creating subtle echoes and reverberations that add depth and richness to the auditory experience.

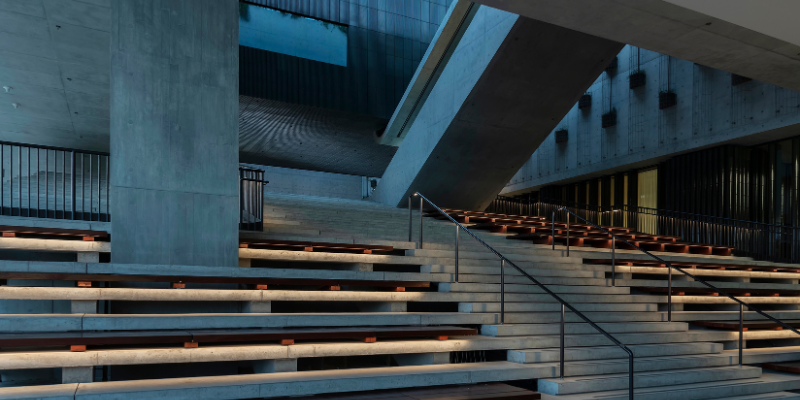

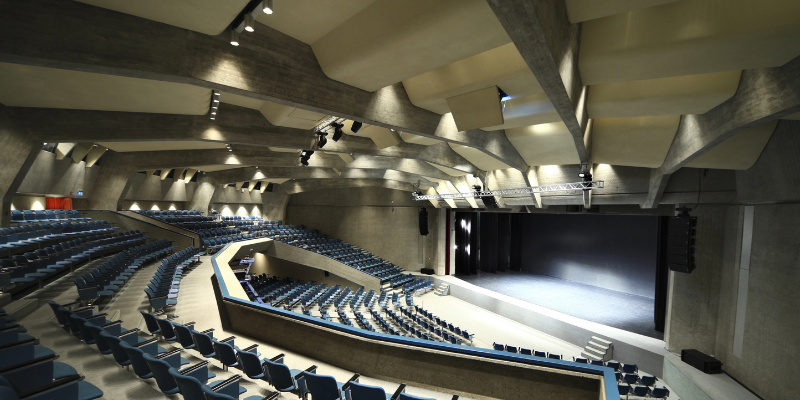

Modernist/brutal architecture: With the emphasis on clean lines, minimalistic aesthetics, large glass surfaces, and open, uncluttered spaces, represents a departure from traditional architectural styles. This design movement emerged in the early 20th century and sought to embrace the possibilities offered by new materials and construction techniques. While Modernist architecture has brought innovation and simplicity to the forefront, its influence on acoustic properties within these spaces is a subject of both admiration and consideration.

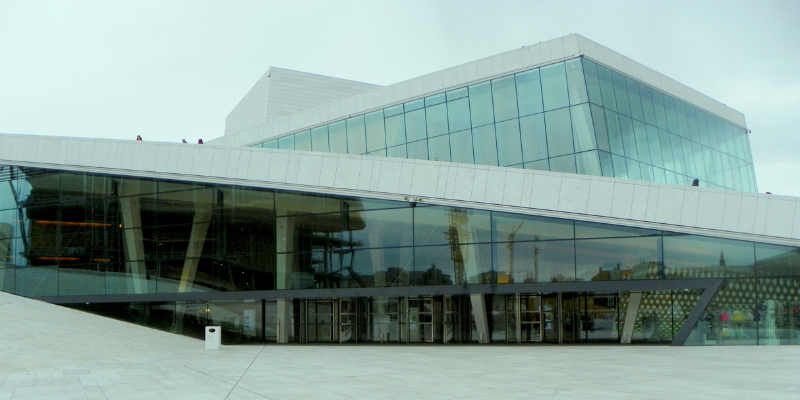

One of the defining features of Modernist buildings is their extensive use of glass, which allows for an abundance of natural light to flood the interior. While this transparency connects occupants with the surrounding environment, it can also introduce acoustic issues. Glass surfaces, being highly reflective, have the potential to create ‘bright’ acoustic environments, where sound waves bounce off surfaces, leading to increased sound reflection and potential issues with echoes.
In response to this challenge, some architects have employed innovative solutions to manage acoustics. By incorporating sound-absorbing materials into the space design. These types of materials include acoustic panels, wall treatments, and even furnishings that help mitigate sound reflection and echo. The choice of materials, such as fabric-wrapped panels, or acoustic ceiling tiles, significantly influence the overall sound scape within a Modernist space.
Additionally, the open layouts often associated with Modernist architecture can affect the dispersion and diffusion of sound. The absence of traditional room dividers and partitions can lead to sound traveling freely across large spaces. While this can foster a sense of openness and connection, it may require careful acoustic planning to avoid excessive noise and ensure that distinct functions within the space remain acoustically separated as needed.
High-Tech Architecture: Characterized by striking features such as exposed structures, prominent technological elements, and extensive use of metal and glass, High-tech architecture epitomizes the fusion of advanced engineering and design innovation.
While this architectural style is celebrated for its futuristic aesthetics and the use of innovative materials, its effects on acoustic properties within these spaces present a fascinating confluence of challenges and opportunities.
The defining hallmark of High-tech architecture is its unapologetic celebration of industrial and technological elements. Exposed structural components, such as steel beams, and extensive use of metal and glass surfaces contribute to its distinctive look. These materials are highly reflective to sound and can introduce notable acoustic effects within the spaces they shape.
Sound waves encounter these surfaces and are reflected, which can result in ‘bright’ acoustical environments. This heightened reflectivity can sometimes lead to sound waves bouncing chaotically, causing sound clarity issues and echo challenges. In open, cavernous spaces with vast expanses of glass and metal, the potential for reverberation and noise can become more pronounced.
To address these acoustic challenges, architects and designers working within the High-tech architectural framework have explored innovative solutions. This may include the strategic use of acoustic treatments and materials designed to dampen sound reflection. The incorporation of sound-absorbing materials, like fabric-wrapped panels, perforated metal panels, or acoustic baffles, helps to mitigate the excessive reflection of sound, thus promoting better sound clarity and reducing echoes.
Furthermore, High-tech architecture often integrates advanced technologies, which can be harnessed for acoustic optimization. Acoustic simulation software and digital control systems are then employed to tailor the auditory experience within these spaces. These systems allow for real-time adjustments in sound quality, enabling the creation of acoustically tailored environments that meet the specific needs of each space.
Architectural Style and Visual Integration
Across all architectural styles, visual systems must be evaluated in relation to the character and intent of the space. Historic venues may require concealment, reversibility, or minimal intervention to preserve architectural integrity. Modernist spaces demand restraint to avoid compounding reflective behaviour, while High-tech environments require system-led integration to prevent visual elements from overwhelming acoustic control.
Visual systems are therefore not universally appropriate in form or scale. Their success depends on sensitivity to architectural style, acoustic behaviour, and audience perception. When introduced without regard for these factors, visual elements risk becoming disruptive rather than supportive.
Architectural Influence on Concert Hall Acoustic Design: Summary
Architectural style profoundly influences the acoustic behaviour of performance spaces. From the projection-focused geometry of classical amphitheatres to the reflective challenges of Modernist and High-tech environments, each style brings its own opportunities and constraints.
Effective sound design acknowledges these characteristics and works within them, ensuring that architectural expression and acoustic performance reinforce rather than contradict one another. In doing so, performance venues can honour their architectural identity while delivering sound experiences that meet contemporary expectations.
Architectural Style, Acoustic Behaviour, and Visual Integration in concert hall acoustic design
Architectural Style | Typical Acoustic Characteristics | Common Acoustic Risks | Visual Integration Considerations | Design Approach |
Ancient Greek / Roman (Amphitheatre) | Strong natural projection, high reflectivity, clear direct sound paths | Excessive reverberation in enclosed adaptations; limited acoustic flexibility | Visual elements should be minimal, reversible, and architecturally sympathetic | Preserve acoustic intent; avoid introducing reflective or dominant visual surfaces |
Historic Concert Halls | Balanced reverberation, rich reflections, audience-dependent absorption | Sensitivity to architectural alteration; limited tolerance for change | Concealment and reversibility are critical; visuals must not disrupt early reflections | Integrate discreetly and protect heritage acoustics |
Modernist / Brutalist | Bright reflections, large open volumes, limited natural diffusion | Echoes, loss of intelligibility, uncontrolled sound travel | Visual surfaces may increase reflectivity; restraint and treatment are essential | Manage reflections through acoustic control and careful material selection |
High-Tech Architecture | Highly reflective materials, exposed structure, large volumes | Specular reflections, excessive reverberation without control | Visual systems must be system-led and acoustically managed | Integrate audio, visual, and control systems from the outset |
Contemporary Hybrid Venues | Variable acoustic response, adaptable layouts | Over-complexity, operator dependency | Visual role must adapt to performance type and space configuration | Performance-led integration with clear operational control |
Accessibility Considerations in Concert Hall Acoustic Design
Creating Accessible Concert Hall Acoustic Design
Accessibility in concert halls extends far beyond physical access. It encompasses the ability for all audience members, including those with hearing or sight impairments, to fully engage with and understand a performance. It is essential that modern concert hall acoustic design treats accessibility as core infrastructure rather than optional enhancements.
Contemporary concert halls increasingly rely on integrated systems that combine audio, visual, and control technologies to support accessibility. When designed correctly, these systems improve the experience for all audience members, not just those who rely on assistive technologies.
Accessibility for Hearing-Impaired Audiences
Hearing Loops
Providing effective access for hearing-impaired audiences is essential across all performance types. One of the most established and reliable solutions is the use of hearing loops, also known as induction loops.
A hearing loop consists of a loop of wire installed around a designated listening area, typically within audience seating. When an audio signal is passed through the loop, it generates a magnetic field that can be received directly by hearing aids or cochlear implants equipped with a telecoil (T-coil). This allows listeners to hear the sound clearly, without interference from background noise or poor room acoustics.
How Hearing Loops Connect to a Modern Audio System:
Signal Transmission: Audio signals from microphones, instruments, or other sound sources are routed through the hall’s audio mixer. These signals are then processed and sent to amplifiers that feed speakers throughout the venue.
Loop Amplifier: A dedicated loop amplifier is also connected to the audio system. This amplifier takes the same audio feed that goes to the speakers and sends it through the induction loop wiring. The loop amplifier can be adjusted to optimize the signal for hearing aid users, ensuring clear sound reproduction.
Magnetic Field: As the audio signal passes through the loop of wire, it generates a magnetic field in the seating area. The hearing aids’ telecoil function picks up this magnetic signal and converts it into sound.
User Experience: Because the audio is transmitted directly to the hearing aids, the listener receives a highly focused and clear sound, without the distortion caused by distance, poor acoustics, or background noise. This allows them to enjoy the performance just as a person without hearing loss would.
Benefits of Hearing Loops in Concert Halls:
Improved Sound Quality: Hearing loops provide a direct audio feed, reducing sound degradation caused by echoes and reverberation in large spaces.
Discreet Assistance: Users don’t need any additional equipment, like headsets, as the telecoil function is built into many modern hearing aids.
Inclusion and Accessibility: Installing hearing loops demonstrates a commitment to accessibility, ensuring that those with hearing impairments can fully engage in performances.
By incorporating hearing loops into a concert hall’s audio system, venues not only meet important accessibility requirements but also enhance the overall quality of the audience’s experience.
Assistive Listening Systems (ALS)
While hearing loops are highly effective, not all patrons may have hearing aids with telecoils. For these individuals, Assistive Listening Systems (ALS), such as FM, infrared, or Bluetooth-based systems, can be invaluable. ALS systems transmit audio wirelessly to personal receivers and can be used with earphones, neck loops, or personal hearing aids.
System Configuration:
Transmitters: These are connected to the concert hall’s audio output, capturing the same sound being sent to the speakers.
Personal Receivers: The sound is transmitted via FM or infrared signals to personal receivers handed out to patrons, allowing them to adjust the volume to their preference. Bluetooth-based systems can stream sound directly to modern hearing aids or smart phones.
Additional Devices:
Earphones or Neck Loops: Patrons who don’t use hearing aids can use earphones plugged into the receiver. Neck loops can be used by those with hearing aids, transmitting the sound through induction.
Handheld Devices: Some venues offer handheld devices with built-in speakers, providing a direct sound source for those who may not have compatible hearing aids.
Real-Time Captioning Systems
Another accessible technology for the hearing impaired is real-time captioning. This system involves transcribing spoken word into text that appears on a screen or the patron’s personal device in real-time. In concert halls, this is especially beneficial for spoken-word performances like operas, lectures, or musicals.
System Integration:
Microphone Input: The spoken word is captured via microphones and sent to transcription software, which converts the speech into text.
Display Options: The text can be displayed on large screens visible to the audience or sent directly to individual devices, such as tablets or smart phones.
Concert halls can also employ several audio engineering strategies and technologies to enhance accessibility for those with visual impairments.
Accessibility for Sight-Impaired Audiences
Audio Description Systems
For visually impaired patrons, audio description is a service that provides a narrated description of visual elements of a performance, such as stage action, costumes, and scenery changes. These descriptions are transmitted in real-time during the performance.
System Configuration:
Narration Input: A designated describer provides live commentary from a booth, describing important visual aspects of the performance.
Transmission: Like assistive listening systems, the narration is transmitted wirelessly to individual receivers used by the patrons.
Individual Control: Patrons can control the volume and timing of the description, ensuring it does not interfere with their experience of the live performance.
Additional Devices:
Handheld Receivers and Headphones: Audio description systems require patrons to use dedicated receivers and headphones. These devices allow them to listen to the descriptions without disturbing other audience members.
Tactile and Braille Displays
For highly detailed performances that involve complex visual storytelling, some venues also offer tactile displays or Braille programs. While not directly related to audio engineering, these systems complement the overall accessibility experience. Tactile models of the stage setup or printed Braille translations of scripts or musical scores can be provided to enhance the understanding of the performance.
Integrated Accessibility Technologies within Concert Hall Acoustic Design
Accessible Mobile Apps
With the rise of smart phones, mobile apps are becoming a popular method of enhancing accessibility in concert halls. Venue-specific apps can deliver a variety of services, including:
Audio streams: For both hearing loops and assistive listening devices.
Captions and subtitles: Streaming real-time captions or translations to personal devices.
Navigation assistance: Using voice commands to help visually impaired individuals navigate the venue.
System Design:
Wi-Fi Integration: A robust Wi-Fi network is essential for supporting mobile apps, ensuring low latency and high-quality streaming for captions, audio, and descriptions.
Multi-stream Management: The audio system should be capable of routing different audio streams (e.g., descriptive audio, music, or speech) to different devices based on user preferences.
Infrared (IR) and Radio Frequency (RF) Systems
For larger venues, infrared or radio frequency systems are often used as an alternative to hearing loops or Bluetooth. These systems can handle multiple channels, allowing for separate audio feeds for different accessibility needs, such as descriptions for visually impaired patrons and amplified sound for those with hearing impairments.
System Configuration:
Transmitters: An infrared or RF transmitter is installed at the concert hall, sending the audio signal to handheld receivers. These receivers can pick up different channels, such as narration or amplified sound.
Multiple Channel Capability: This enables the venue to serve various accessibility needs from the same system.
Visual Systems as Accessibility Infrastructure
In modern concert halls, visual systems increasingly function as critical accessibility infrastructure rather than optional enhancements. Screens and displays support captioning, visual reinforcement, wayfinding, and redundancy when audio-only communication is insufficient.
For accessibility purposes, visual systems must be designed with:
- Visibility and Contrast: Ensuring text and imagery remain legible across varying lighting conditions.
- Redundancy: Maintaining access when one system fails—screens should not represent a single point of failure.
- Latency Control: Audio, captions, and visual cues must remain tightly synchronised to avoid perceptual dissonance.
- Coverage and Sightlines: Displays must be positioned so accessible content is visible from all relevant seating areas.
When visual systems are treated as integral components of accessibility design, they support inclusion without drawing attention away from the performance itself. That said, it’s important to remember that visual systems should complement, not replace, audio-based accessibility solutions, and must be applied proportionately to the performance context.
Planning for Accessible Concert Hall Acoustic Design
When designing or upgrading a venue, accessibility should be addressed at a system level rather than as a series of isolated additions. Key considerations include:
- System Integration: Assistive technologies must interface cleanly with the main audio system.
- Low Latency: All accessibility feeds must remain synchronised with the live performance.
- Operational Reliability: Systems should be easy to operate and robust under live conditions.
- Training and Maintenance: Venue staff must be equipped to manage accessibility systems confidently.
- Device Availability: Sufficient receivers and accessories must be available to meet audience demand.
Accessibility as Core Performance Infrastructure
In contemporary performance spaces, accessibility systems should be regarded as core performance infrastructure rather than supplementary features. Audio, visual, and control systems must operate cohesively to support intelligibility, inclusion, and reliability under live conditions.
When accessibility is addressed at a system level, venues not only meet regulatory requirements but also improve the overall clarity and usability of the performance environment for all audiences.
Related guidance: Visual systems, captioning, and display technologies as accessibility infrastructure in performance venues.
Accessibility Considerations in Concert Hall Acoustic Design: Summary
Accessibility is an essential component of modern concert hall design. Through the thoughtful integration of audio, visual, and control systems, venues can ensure that performances are inclusive, intelligible, and engaging for all audience members. When accessibility is treated as core infrastructure rather than an afterthought, it enhances not only compliance and inclusion, but the overall quality of the performance experience.
Accessibility Needs and Integrated Systems for concert hall acoustic design
Accessibility Requirement | Audio System Support | Visual System Support | Key Design Considerations |
Hearing Impairment (Telecoil users) | Hearing loops with dedicated amplification and clean programme feed | Visual confirmation of system availability and coverage zones | Magnetic field consistency, low noise floor, clear signage |
Hearing Impairment (Non-telecoil users) | Assistive Listening Systems (FM, IR, Bluetooth) | On-screen indicators or app-based guidance | Latency alignment, receiver management, device compatibility |
Spoken Word Comprehension | Optimised speech reinforcement and microphone selection | Real-time captioning displays or personal-device delivery | Caption accuracy, synchronisation, sightlines |
Visual Impairment | Audio description channels routed through ALS | Minimal reliance on visual-only cues | Independent volume control, channel separation |
Cognitive Accessibility | Clear, consistent audio levels and intelligibility | Simple, high-contrast visual information | Avoiding overload, predictable presentation |
System Failure or Degradation | Redundant audio routing and monitoring | Secondary visual channels or fallback messaging | Failure tolerance, rapid recovery, staff training |
Concert Hall Acoustic Design: Spoken Word Performances
Spoken Word Performance Acoustic Design.
Spoken word events test the precision of concert hall acoustic design more than almost any other performance type. Tailoring sound systems for spoken word events in concert halls is crucial for ensuring that speech is clear and intelligible for the entire audience.
Acoustic considerations.
Concert halls are typically designed for music and are often too reverberant for spoken word performances. This reverb can muddy the clarity of speech. Therefore, consider using acoustic treatments like baffles or curtains to dampen excess reverberation.
Sound Reflections: Be aware of early reflections, as they can interfere with direct sound and degrade speech clarity. Using directional speakers can help minimize these reflections.
Microphones.
There is a wide variety of microphones to choose from, each having distinctive uses, benefits, and limitations.
Lavalier microphones: These are clip-on mics that are often used for spoken word to keep the hands free.
Headset microphones: These provide consistent audio quality since the microphone capsule is always the same distance from the mouth.
Handheld microphones: They offer more control and can be preferable for speakers who move around a lot.
Polar Pattern: Cardioid or super cardioid patterns help to reject off-axis noise and focus on the speaker’s voice.
Speakers
Speaker Placement is crucial, get it wrong and the complete audio design can fail.
Main Speakers: These are the primary source of amplified sound and care must be taken when positioning these at the front of the room, and any delay speakers will be referenced from this point.
Delay Speakers: In larger halls, to ensure that sound reaches the back of the room at approximately the same time as the direct sound from the stage, use delay speakers. This helps maintain clarity and timing.
Monitoring: Provide onstage monitors for speakers so they can hear themselves. This helps them modulate their voice better and avoids the strain of shouting.
Speaker simulation: Computer simulation can be used to show the coverage and the timing of any speakers within the room. This ensures that coverage is sufficient for the audience area and any unwanted sound can also be predicated.
Visual Alignment and Intelligibility
For spoken word, visual systems often play a supporting role in comprehension rather than spectacle. Large-format displays, confidence monitors, or captioning screens can reinforce understanding. This is particularly true in complex or information-heavy presentations.
Key considerations include:
- Latency Alignment:
Audio, visuals, and captions must remain tightly synchronised. Even small timing mismatches between sound and image can distract the audience and reduce comprehension. - Sightlines:
Visual reinforcement must be visible from all relevant seating positions without drawing focus away from the speaker. - Purposeful Use:
Visuals should support clarity and emphasis, not compete for attention.
When used appropriately, visual reinforcement acts as intelligibility infrastructure rather than a presentation layer.
Ambient Noise: Control ambient noise like HVAC systems, external sounds, etc. They can distract the audience and reduce intelligibility. Lower levels of ambient noise may be distracting for speech than from music applications.
System tuning
During system tuning, measurement systems can be used to verify any previous simulations done for the system design. EQ, delay, and configuration changes are done based on the measurements taken with measurement mics throughout the room.
Backup Systems.
Have backup microphones and cables on hand. Technical issues can arise unexpectedly, so being prepared is essential.
Training & Communications
Training & Communication: Ensure that the speaker knows how to use the microphone, especially if they’re moving around. Train your sound engineers or operators to be attentive to the nuances of spoken word events.
Concert Hall Acoustic Design for Spoken Word Performances: Adaptation and Summary
Designing sound systems for spoken word is not simply about selecting equipment; it is about understanding human speech, perception, and attention. By controlling acoustics, optimising system design, and aligning audio with visual support where appropriate, engineers can ensure that every word reaches the audience clearly and without effort.
Spoken word is unforgiving, but when handled correctly, it delivers some of the most powerful and direct experiences a performance space can offer.
Concert Hall Acoustic Design: Classical Music Performances
Acoustic considerations.
Classical performance places some of the most refined and sensitive demands on concert hall acoustic design. Unlike amplified genres, classical music relies heavily on the natural relationship between performers and space. The hall itself becomes part of the instrument.
Traditionally, classical concert halls are designed with a slightly longer RT60 reverberation time to add warmth, sustain, and cohesion to orchestral sound. These reverberation targets must be established during the architectural design phase, often informed by benchmarking against successful historic venues. Volume, surface materials, and geometry all contribute to achieving the desired acoustic response.
Historically, designers relied entirely on architectural form and material selection to achieve projection and blend. Reverberant surfaces, carefully shaped auditoria, and the physical distribution of performers were the primary tools available. Electronic reinforcement simply did not exist.
Today, modern concert hall acoustic design allows for greater flexibility. Electronic room simulation systems, variable acoustic architecture such as retractable reflectors, and carefully applied reinforcement can extend or adapt the natural acoustic response where required. However, these interventions must be applied with restraint. In classical performance, technology should support the space, not redefine it.
Microphones.
Microphone strategy in classical performance is fundamentally different from that used in amplified genres. The objective is not control for its own sake, but preservation of tonal integrity, spatial coherence, and dynamic realism.
A range of techniques may be employed depending on the hall, repertoire, and production requirements. Close miking offers precision and greater control within the mix, allowing individual instruments or sections to be shaped subtly when reinforcement is necessary. However, excessive close miking can compromise the natural blend that defines orchestral music.
More traditional approaches rely on stereo pairs, spaced arrays, or ambient techniques positioned to capture the orchestra as a cohesive whole. These methods preserve the relationship between performers and room, allowing the hall’s acoustic signature to remain part of the sound.
The choice between close and distant microphone techniques is therefore not purely technical; it is philosophical. It reflects a decision about how much of the natural acoustic environment should be preserved, and how much intervention is appropriate for the audience, repertoire, and venue.
In classical settings, the most successful microphone deployments are often those that feel invisible. When properly executed, reinforcement enhances clarity and balance without altering the perceived authenticity of the performance.
Speakers
A classical performance may require less low-frequency reinforcement than a more modern music style, and dependant on the mic technique used, it may also not be best presented in a stereo format.
Many systems designed for a mix of music type, often have subwoofers which are removed for a classical performance, both because they are not needed, and also because their inclusion requires space on stage.
Developments in sound system designs, particularly in Spatial Audio, such as that included in the L-Acoustics L-ISA system, have also led to new ways of presenting audio from a classical orchestra. By using multiple loudspeakers across the front of stage, with a spatial audio processor, this allows an audio channel to have a space within the mix rather than just an amplitude. In a classical setting, this results in being able to present an illusion of sound from the correct place in the orchestra, as if you were watching the performance unamplified.
Ambient noise.
The ambient noise will be more important within a classical concert hall, than another performance space, such as a Nightclub or similar, due to the quieter, and more dynamic nature of the performance.
The ambient noise can be defined as a target value using the Noise rating (known as NR) Curve defined by the ISO.
Sound Check and System Tuning
When tuning a sound system for classical music, the approach shares several similarities with that of spoken word performances, primarily in ensuring that the sound is clear and intelligible throughout the venue. However, classical music typically requires a more complex system setup due to the broader range of dynamics, frequencies, and instruments involved.
Unlike spoken word performances, which usually focus on amplifying a single voice or a few microphones, classical music requires fine-tuning multiple channels that represent different sections of the orchestra. Each instrument group—strings, brass, woodwinds, and percussion—has unique acoustic characteristics, and their placement in the concert hall must be carefully considered to preserve their natural timbre and balance. The system tuning process will involve:
Additional Channels: Classical music performances often necessitate multiple microphones and channels to capture the subtleties of each instrument. The engineer must manage these channels effectively to avoid overwhelming the audience with too much sound from any one section.
Frequency Response Tuning: Ensuring an even frequency response across the venue is vital, as classical music spans a much wider frequency range than spoken word. Low frequencies from instruments like the double bass or tuba need to be balanced with higher-pitched instruments such as violins and flutes, ensuring no instrument overshadows another.
Reverberation Control: Classical music often relies on the natural acoustics of the hall for reverberation, but in larger or acoustically complex venues, additional electronic reverberation might be applied. This differs from spoken word, where minimal reverberation is preferred to maintain clarity of speech.
Dynamic Range: Classical music has an expansive dynamic range, from soft passages (pianissimo) to powerful crescendos (fortissimo). The sound system needs to handle this range without distortion or losing the detail of quieter sections, whereas spoken word has a more consistent dynamic range.
In short, while the principles of system tuning for spoken word and classical music overlap, the latter demands more precision in channel management, frequency balancing, and dynamic range handling to reproduce the music’s full emotional and sonic depth accurately.
Concert Hall Acoustic Design for Classical Music: Summary
Acoustic design for classical music is fundamentally an exercise in restraint. The role of the engineer is not to impose technology, but to support the natural relationship between performers, space, and audience. When acoustics, system design, and visual elements are handled with care, classical performances retain their authenticity while benefiting from subtle modern support.
The most successful classical sound systems are those that the audience never notices because the music feels entirely natural.
Concert Hall Acoustic Design: Rock & Contemporary Music Performances
Acoustic considerations.
Rock and contemporary music require a different application of concert hall acoustic design principles, particularly in relation to reinforcement and control. This genre presents unique challenges and opportunities for audio engineers due to the high energy, amplified sound, and reliance on electric instruments. Achieving optimal acoustics for rock music in a concert hall setting requires a balance between power, clarity, and impact, often involving significant electronic intervention to control the audio environment.
Reverberation Time (RT60) and Hall Design
Rock music generally benefits from a shorter RT60 (reverberation time) compared to classical music. Excessive reverb can muddy the sound, making it difficult to distinguish between instruments and vocals. Therefore, the acoustics of the concert hall must be adjusted accordingly. If the venue has a longer natural reverberation time, electronic solutions such as sound-absorbing panels or digital reverb management tools can be employed to tame reflections and create a more controlled environment.
Electronic Sound Reinforcement
Unlike classical music, rock heavily relies on electronic sound reinforcement. Modern PA systems with robust subwoofers, line arrays, and amplifiers are critical to delivering the power and energy of a rock performance. Systems like L-Acoustics or d&b audiotechnik can help achieve clear, powerful sound that fills the venue while avoiding distortion.
Microphones.
Close-micing is the most common microphone technique in rock music. Each instrument, particularly electric guitars, bass, and drums, is often mic’d close to the source to capture the raw sound and prevent bleed from other instruments. For electric instruments, direct injection (DI) boxes may be used to feed the signal directly into the sound system, bypassing the need for microphones altogether.
For vocals, dynamic microphones such as the Shure SM58 are commonly used to handle the high sound pressure levels (SPL) and ensure vocal clarity amidst loud instruments.
Speakers used for contemporary music in Concert Hall Acoustic Design
Low-Frequency Reinforcement
Rock music demands significant low-frequency reinforcement. Subwoofers are essential for capturing the power of bass guitars, kick drums, and synthesized sounds that drive much of rock music’s energy. Unlike classical music, where low-frequency elements are subtle, rock performances thrive on the deep, punchy bass that subwoofers deliver.
In rock music, spatial audio systems can create immersive sound experiences. Systems such as the L-Acoustics L-ISA use multiple speaker arrays to give the impression that sound is emanating from specific points on stage, enhancing the audience’s engagement. This can be especially useful in larger venues where the audience is spread over a wide area.
Line arrays, strategically placed to cover the entire audience, ensure that the sound is distributed evenly across the venue. Delays may also be used to time-align distant speakers, ensuring that all sections of the audience experience the same punchy, high-energy sound.
Ambient noise & feedback management.
Rock music venues often have higher ambient noise levels than classical concert halls, but it’s still important to minimize background noise and manage feedback. Noise gates, equalization, and proper speaker placement can help control unwanted noise and feedback, ensuring that the performance is clear and powerful without interference.
Dynamic Range and Volume Management
Unlike classical music, which has soft and loud passages, rock music tends to have a more consistent dynamic range. The engineer’s role is to ensure that the performance is loud without being uncomfortable, which can be challenging when managing high SPLs. Compression and limiting are often used to prevent peaks that could damage the sound system or harm the audience’s hearing.
In summary, achieving optimal acoustics for rock music in concert halls involves focusing on powerful electronic reinforcement, effective low-frequency management, and using modern sound systems to deliver an immersive, high-energy experience. The goal is to provide clarity, punch, and impact without losing the nuance and detail of the performance.
Spatial Audio and Immersive Presentation
Spatial audio techniques can be used to enhance immersion and localisation in rock and contemporary performances. By positioning sound sources across the sound field rather than simply increasing level, spatial approaches can increase clarity while maintaining impact.
When implemented correctly, spatial reinforcement helps the audience perceive sound as originating from the stage, even in large venues. However, spatial techniques must be applied with care; overuse can distract from musical cohesion and reduce focus.
Visual Synchronisation and Perceptual Impact
In rock and contemporary music, visual systems often play a prominent role in shaping audience perception. Lighting, motion, and imagery can reinforce rhythm, dynamics, and structure, but they can also undermine clarity if poorly integrated.
Key considerations include:
- Audio–visual synchronisation: Visual motion must align with musical timing and dynamics.
- Perceptual balance: Visual intensity should support, not mask, sonic detail.
- Clarity preservation: Excessive visual complexity can reduce the audience’s ability to focus on musical elements.
Effective integration treats visual systems as extensions of the performance, not parallel distractions.
Concert Hall Acoustic Design for Contemporary Music: Summary
Acoustic engineering for rock and contemporary music in concert halls is a discipline of control. Power, clarity, and impact must coexist without overwhelming the room or the audience. When audio, acoustics, and visual systems are integrated thoughtfully, the result is a high-energy experience that remains intelligible, immersive, and physically engaging.
The best systems deliver intensity without chaos and excitement without fatigue.
Concert Hall Acoustic Design: Musical Theatre Performances
Acoustic considerations
Musical theatre presents a unique blend of spoken word, live music, and dynamic stage performances. Audio design for musical theatre must balance clarity of dialogue with musical richness, all while ensuring that the sound system enhances the audience’s immersion without overshadowing the performers.
Reverberation Time (RT60) and Concert Hall Design
Musical theatre benefits from a moderate RT60, with enough reverberation to add warmth and fullness to the sound without overwhelming the clarity of spoken dialogue. Many musical theatre performances use microphones, so electronic sound reinforcement plays a crucial role in delivering consistent sound throughout the venue. If a venue has a naturally long reverb time, it may need to be electronically managed to avoid muddied dialogue.
Electronic Sound Reinforcement
Musical theatre typically involves a combination of dialogue and musical performance, requiring a sound system capable of handling both spoken word and music with precision. Wireless lavalier microphones or headset mics are commonly used for actors to allow for freedom of movement while maintaining vocal clarity. These mics are often paired with dynamic handheld microphones for singers and performers.
A distributed speaker system may be employed to ensure even coverage across the venue, and delay speakers can be used to time-align the sound for audiences sitting further back. These systems must be finely tuned to ensure that dialogue is intelligible, even during louder musical numbers.
Microphone Techniques and Ensemble Sound
Unlike rock or classical performances, musical theatre often involves multiple performers speaking, singing, and interacting with each other on stage. The audio engineer must carefully balance these sources to ensure that each performer is heard clearly, especially during ensemble numbers.
Close-micing is used for both dialogue and singing, with each performer wearing individual microphones. This allows for greater control over each voice in the mix and ensures that performers are heard over the orchestra or backing tracks.
Speakers: Low-Frequency Reinforcement and Music
While musical theatre does not typically require the intense low-frequency reinforcement of rock music, it still benefits from a solid low-end to support the music. Subwoofers can be used to reinforce the bass in musical numbers, but they must be carefully controlled to avoid overpowering the dialogue.
The orchestra or pit band often requires a mix of close and ambient microphone techniques. Close micing ensures that each instrument can be heard clearly, while ambient mics help capture the overall sound of the orchestra, adding a natural acoustic feel to the performance.
Spatial Audio and Sound System Design
Spatial audio can enhance the immersive experience of musical theatre by creating a more realistic soundscape. For instance, sound effects like footsteps, doors opening, or environmental noises can be panned across the sound field to give the audience a sense of directionality and realism.
In more advanced productions, systems such as Meyer Sound’s Constellation, can create immersive audio environments that enhance both the music and the dialogue. These systems allow for precise control over the sound image, helping to anchor the sound to the performer on stage even when using amplification.
Ambient Noise and Feedback Management
Managing ambient noise in musical theatre is critical to maintaining the illusion of the performance. Unwanted noise, feedback, or background hum can break the audience’s immersion. Acoustic treatments and careful microphone placement are essential to avoid feedback, especially when using wireless mics close to high-powered speakers.
Dynamic Range and Volume Management
Musical theatre performances often feature wide dynamic ranges, with quiet dialogue scenes interspersed with loud musical numbers. The sound system must be able to handle these fluctuations without distortion or loss of clarity. Compression and limiting are often employed to smooth out peaks in volume while preserving the emotional impact of the performance.
Spatial Audio and Narrative Localisation
Spatial audio techniques can enhance musical theatre by reinforcing narrative localisation. Sound effects such as footsteps, doors, or environmental ambience can be positioned within the sound field to support stage action and storytelling.
For dialogue and singing, spatial processing must be applied conservatively. The audience expects voices to remain anchored to performers, even when reinforcement is used. Any perceptual separation between sound and source can break the illusion.
Visual Synchronisation and Control
Visual elements in musical theatre are tightly bound to narrative timing. Set changes, projections, captions, and lighting cues must align precisely with dialogue, music, and sound effects.
Key considerations include:
- Latency alignment: Audio and visual cues must remain synchronised throughout the performance.
- Control integration: Audio, lighting, and visual systems should be coordinated through reliable control workflows.
- Operator clarity: Complex cue structures require intuitive interfaces to reduce operator error.
In musical theatre, visual systems serve the story. When poorly coordinated, they draw attention to the technology rather than the performance.
System Coordination and Performance Control
Musical theatre places exceptional demands on system coordination. Audio, visual, lighting, and control systems must operate within tightly defined timing and operational tolerances to preserve narrative coherence and performer localisation.
Clear system architecture, intuitive operator interfaces, and predictable cue execution are essential to preventing technical complexity from undermining artistic intent.
Related guidance: Coordinated audio-visual system design for narrative-led performance environments.
Concert Hall Acoustic Design for Musical Theatre: Summary
Successful musical theatre sound design depends on balance, coordination, and narrative awareness. Audio systems must support dialogue, music, and movement without drawing attention to themselves. When acoustics, sound reinforcement, and visual systems are carefully integrated, musical theatre becomes a fully immersive experience. The audience should ‘feel’ that the sound belongs to the story, not the technology behind it.
Speaker Systems use in Concert Hall Acoustic Design
Types of Speakers and Suitability for Different Genres
Loudspeaker selection and deployment remain central to contemporary concert hall acoustic design. Designing a speaker system for concert halls is a complex task that requires careful consideration of many factors including acoustics, types of events, performers, and the audience. There are many different types of speakers, covering every aspect of acoustic requirement.
Concert Hall Acoustic Design: Line array speakers.
Line array speaker systems are commonly used in concert halls. They consist of multiple speakers stacked vertically and they provide even sound dispersion over a wide area, making them suitable for large venues.
Array configurations can be chosen based on the hall’s size and shape. Line arrays are based around “line source theory,” where sound is emitted from a continual line source, this means that sound should carry further into the venue, due to this vertical coupling of speakers.
An easy definition of the energy dispersion of this, is to think of the surface area of a cylindrical column, whereas other sound sources different as per the surface area of a sphere. This results in a line array (within certain parameters) of only losing 3dB per doubling of distance. This, however, does have disadvantages of different couplings of sources, and therefore dispersion patterns dependant on frequencies, so modern line array design must take this into account, and means that a true line source is never quite possible.
Concert Hall Acoustic Design: Point Source Speakers
Point source speakers are single speakers, or sets of speakers, which emit sound in all directions from a single source point. They are versatile and can be used in smaller concert halls or for specific applications like monitoring. They are suitable for a wide range of genres.
A point source “array” is made from a series of loudspeakers, each with a defined coverage pattern in the vertical or horizontal. The aim being, that each of these angles converges back to a single point some way back behind the array – giving the impression of a single coherent sound source as you walk across the coverage pattern of the loudspeakers.
However, the coverage of a single loudspeaker can never be even over frequency (although some extremely good attempts have been made), so some interactions can be detrimental in the interactions between speakers. It must be noted of course that in the frequencies at which so called line-sources act as a point source, these have the same issues.
In general, a point source array, audio will fall off at 6dB per doubling of distance from the source. An easy way of thinking of this is to imagine the area of a sphere, were A= 4pi*r^2. IT can be seen that as you double r, then the sound energy will be spread out by 4 times the value.
Concert Hall Acoustic Design: Sub-woofers.
Subwoofers are essential for reproducing low-frequency sounds (bass) accurately. They should be strategically placed to ensure even bass coverage throughout the hall. The choice of subwoofers depends on the size of the venue and the desired low-frequency response.
Concert Hall Acoustic Design: Horn speakers.
Horn speakers are known for their efficiency and directionality. They are suitable for outdoor events or venues with challenging acoustics where sound needs to be directed to a specific area.
Speaker Placement & Configuration in Concert Hall Acoustic Design
Array Configurations: The choice of speaker arrays, such as stereo, mono, or multi-channel set-ups, depends on the hall’s layout and the desired sound experience. Surround sound arrays may be suitable for immersive experiences.
Coverage Analysis: Before installing speakers, conduct a thorough acoustic analysis of the hall to determine areas with uneven sound distribution or acoustic issues. Use software modelling tools for precise calculations.
Main PA System: Install the main PA (Public Address) system as close as possible to the source to amplify, for example with a band the PA will be in line with the band at the front of the stage.
Delay Speakers: In larger venues, delay speakers are placed at various distances from the stage to ensure that sound reaches all areas simultaneously. Time alignment and delay settings are crucial for synchronization.
Cluster vs. Distributed Systems: Decide whether to use a single main cluster of speakers or distribute them around the venue. This depends on the hall’s size, architecture, and acoustic properties.
Concert Hall Acoustic Design: Subwoofer and Low-Frequency Array Design
Subwoofer Placement: Subwoofers should be strategically located to minimize unwanted resonances and phase cancellation. Common placements include under the stage, in front of it, or flown above the stage.
Array Configuration: Subwoofer arrays, such as cardioid or end-fire arrays, can be used to control low-frequency dispersion and reduce stage rumble.
Successful speaker system designs often involve a mix of speaker types, precise placement, and sophisticated acoustic modelling to cater to the specific needs of the concert hall and its intended use. Collaboration between architects, acousticians, and sound engineers is crucial to achieving optimal results. Additionally, regular maintenance and adjustments are essential to ensure the system continues to perform at its best.
Noise Dampening & Acoustic Treatments in Concert Hall Acoustic Design
Noise control and acoustic treatment strategies form a critical layer within concert hall acoustic design. Effectively managing noise and optimizing acoustics can enhance the listening experience for both performers and audience members.
Importance of Noise Control in Concert Hall Acoustic Design
Sound Quality: Concert halls are designed to provide excellent sound quality and clarity. Unwanted noise can degrade the quality of the music and negatively impact the audience’s experience.
Intelligibility: Noise control helps maintain speech intelligibility during spoken segments of performances, such as orchestra introductions or artist interactions with the audience.
Ambience: Concert halls should have a specific acoustic ambience that enhances the music. Uncontrolled noise can disrupt this ambience.
Performers’ Comfort: Reducing noise and providing good acoustics also contributes to the comfort and confidence of performers on stage.
Strategies for Reducing Unwanted Noise:
Architectural Design: Proper architectural design is essential. This includes soundproofing materials in the walls, ceilings, and floors to prevent external noise from entering and internal noise from escaping.
HVAC Systems: Installing quiet heating, ventilation, and air conditioning (HVAC) systems is crucial to minimize mechanical noise in the venue.
Stage Management: Implementing stage management practices that reduce noise, like quieting moving equipment and minimizing stage creaks, is essential.
Audience Control: Educating the audience about maintaining silence during performances and enforcing rules can help reduce audience noise.
Concert Hall Acoustic Design: Acoustic Treatments
Absorbers are materials designed to absorb sound energy rather than reflect it. They reduce echoes and reverberation in the hall. Common materials include acoustic panels and curtains.
Diffusers scatter sound waves, preventing them from concentrating in certain areas. This can help create a balanced sound throughout the hall and reduce acoustic dead spots.
Bass traps target low-frequency sounds, which are often challenging to control. They absorb or diffuse low-frequency sound waves, preventing bass build-up and creating a more even acoustic profile.
Balancing Acoustic Treatment with Aesthetics:
Aesthetic Integration: To maintain the visual aesthetics of the concert hall, acoustic treatments can be designed to blend seamlessly with the architecture and decor. For example, acoustic panels can be covered with fabric that matches the hall’s colour scheme.
Hidden Treatments: Concealing acoustic treatments behind acoustic-friendly surfaces, such as decorative grilles or perforated panels, can maintain a clean and unobtrusive appearance.
Custom Design: Working with architects and acoustic engineers from the beginning of the design process allows for the integration of acoustic treatments into the hall’s overall aesthetic, ensuring they are both functional and visually pleasing.
In conclusion, noise control and acoustic treatment are integral to creating an exceptional concert hall experience. Proper planning, architectural design, and the use of absorbers, diffusers, and bass traps can optimize acoustics, while careful consideration of aesthetics ensures that these treatments do not detract from the hall’s visual appeal. The goal is to strike a balance between aesthetics and acoustic performance to create a world-class concert venue.
Concert Hall Acoustic Design: Sound Engineering Best Practice
Best practice in concert hall acoustic design extends beyond equipment selection and into system architecture, workflow clarity, and collaboration. Here are some best practices for audio engineers in these settings:
Best Practice for Sound Engineers
Understand the Venue: Familiarize yourself with the acoustic properties of the concert hall you’re working in. Different halls have unique acoustics, and knowing the characteristics of the space will help you make informed decisions about microphone placement and sound reinforcement.
Microphone Placement: Proper microphone placement is crucial for capturing the best sound. Experiment with microphone positioning to achieve the desired balance and clarity for different instruments and vocalists. Pay attention to factors like proximity effect and off-axis rejection.
Sound Check: Conduct thorough sound checks before the event to fine-tune the sound system. Work closely with the performers to ensure that their instruments and voices are accurately reproduced through the speakers.
Monitor Feedback: Be vigilant for feedback issues, which can be more pronounced in concert halls due to their acoustics. Use graphic equalizers, feedback eliminators, and proper microphone placement to prevent feedback from occurring during the performance.
Use High-Quality Equipment: Invest in high-quality microphones, pre-amps, and signal processing equipment. Quality gear can make a significant difference in the overall sound quality.
Handling Live Acoustic Challenges
Adapt to the Venue: Recognize that every venue has its unique challenges. Adjust the sound system and equipment settings to compensate for acoustical issues such as excessive reverb or uneven coverage.
Room Treatment: Consider using acoustic treatment like baffles, drapes, or diffusers to control reflections and improve the acoustics of the venue, if possible.
Monitor the Sound: Continuously monitor the sound during the performance and make real-time adjustments as needed. Pay attention to audience reactions and performer feedback to gauge the sound quality.
Collaboration with Performers and Production Teams
Effective Communication: Establish clear communication with the performers, stage crew, and other professionals involved in the event. Discuss audio requirements, cues, and expectations well in advance to ensure a smooth performance.
Rehearsals: Participate in rehearsals whenever possible. This allows you to work closely with the performers to fine-tune the sound and address any issues before the live event.
Teamwork: Collaborate with lighting designers, stage managers, and other crew members to ensure that all technical aspects of the event are coordinated effectively.
Troubleshooting Common Sound Issues:
Feedback: To combat feedback, identify the problematic frequency and use a graphic equalizer to reduce it. Adjust the microphone position or use notch filters to eliminate feedback without affecting the overall sound quality.
Unwanted Noise: Isolate and eliminate sources of unwanted noise, such as electrical interference or ground loops. Use high-quality cables and connectors to minimize noise.
Maintaining Balance: Continuously adjust the mix to maintain a balanced sound, considering changes in volume and instrument dynamics during the performance.
Backup Planning:
Always have backup equipment and cables on hand in case of technical failures. A well-prepared sound engineer can quickly address issues without disrupting the event.
Training and Continuing Education:
Stay updated with the latest sound engineering techniques and technologies through workshops, courses, and networking with other professionals in the field.
Conclusion: The Future of Concert Hall Acoustic Design
Throughout this guide, we have examined the multiple disciplines that converge within concert hall acoustic design. Concert halls and live performance spaces require a careful balance of technical knowledge, adaptability, and clear communication.
When assessing a concert hall for sound installation or improvement, it is essential to consider all contributing factors. Venue size, architectural form, materials, seating layouts, and the nature of the performances taking place all have a direct impact on sound quality. No single solution applies universally, and successful outcomes depend on understanding how these elements interact within each unique space.
Concert halls are among the most demanding environments for acoustic engineering. They host performances ranging from delicate orchestral works to spoken word, musical theatre, and high-energy contemporary music. Each of these places different demands on acoustics, system design, and operation. The role of the sound engineer is therefore both technical and interpretive. Ensuring that sound remains clear, controlled, and appropriate to the performance, while supporting the emotional intent of the music or spoken word.
At its core, concert hall acoustics represents a fusion of physics, engineering, architecture, and human perception. While technology continues to evolve, the fundamental principles explored in this book remain central to achieving high-quality results. Modern tools allow engineers to refine and adapt sound systems more precisely than ever before, but they are most effective when applied with restraint and understanding.
Every performance creates a unique experience for each listener. Concert halls bring these individual experiences together, uniting audiences through shared sound in a way few other spaces can achieve.
The future of concert hall acoustic design will continue to evolve as architecture, technology, and audience expectations advance. By continuing to learn, observe, and refine our approach to sound design, we can ensure that these spaces remain capable of delivering meaningful and memorable auditory experiences for generations to come.
Glossary of Concert Hall Acoustic Design Terms
This glossary serves as an introduction to the essential terms in sound engineering and acoustics, providing a foundational understanding for beginners in the field.
Glossary A – C
A
Absorption
The process by which sound energy is absorbed by materials, preventing it from being reflected back into the environment.
Accessibility Systems
Technologies and design approaches intended to ensure performances can be experienced by audiences with hearing or sight impairments.
Acoustical Design
The practice of designing a space to optimize its acoustic properties, ensuring the best possible sound experience.
Acoustics
The science of sound, focusing on its production, transmission, and effects in a given environment.
Amplitude
The maximum displacement of particles in a sound wave from their resting position, determining the volume or loudness of the sound.
Angle of Incidence
The angle at which a sound wave strikes a surface.
Angle of Reflection
The angle at which a sound wave bounces off a surface, which is equal to the angle of incidence.
C
Chain Reaction
The process by which vibrations cause particles in a medium to transfer sound energy to neighbouring particles.
Compression
The phase of a sound wave where air molecules are pushed together, creating areas of higher pressure.
Cognitive Load
The amount of mental effort required to process sensory information; excessive or conflicting stimuli can reduce comprehension and focus.
Cycles
Refers to one complete oscillation or vibration of a sound wave.
Glossary D – G
D
Diffraction
The bending of sound waves around obstacles or through openings, allowing sound to reach areas not in a direct line of sight.
Density
The mass of particles in a medium through which sound travels, influencing how sound propagates.
Direction
The path that a sound wave takes as it travels through a medium.
E
Echoes
Sound waves that are reflected back to the listener after bouncing off a surface, heard as distinct repetitions.
Elasticity
The ability of a material to return to its original shape after being deformed by sound waves.
Energy
The force transmitted through a medium by sound waves, responsible for producing audible sound.
F
Frequency
The number of cycles a sound wave completes per second, measured in Hertz (Hz). It determines the pitch of a sound.
Fundamental Principles
The basic rules and laws governing sound behaviour in different environments.
G
Generation
The creation or production of sound, typically through the vibration of an object.
Glossary H – N
H
Hertz (Hz)
The unit of measurement for frequency, indicating the number of sound wave cycles per second.
High Frequency
Refers to sounds with high pitch, typically above 2,000 Hz.
I
Instruments
Devices that produce sound through vibration, commonly used in music.
Intelligibility
The clarity with which speech or sound can be understood, influenced by acoustics, system design, and noise.
Interactions
The ways in which sound waves interact with surfaces, objects, and mediums, affecting their behaviour.
L
Latency
The delay between a signal being produced and perceived. In performance environments, excessive latency between systems can disrupt intelligibility and perception.
Law of Reflection
States that the angle of incidence equals the angle of reflection for sound waves bouncing off a surface.
Larger Amplitudes
Indicate louder sounds due to greater displacement of particles in the medium.
Localisation
The ability of a listener to perceive the apparent origin of a sound source within a space.
M
Medium
The substance through which sound waves travel, such as air, water, or solids.
N
Negative Pressures
The regions in a sound wave where air molecules are more spread out, creating areas of lower pressure.
Noise Control
Techniques used to manage unwanted or harmful sound in a given environment.
Glossary O – T
O
Oscillations
The repetitive back-and-forth movement of particles in a sound wave, responsible for generating sound.
P
Perceptual Alignment
The relationship between what an audience hears and what they see, affecting how sound is interpreted and understood.
Propagation
The movement of sound waves through a medium from the source to the receiver.
Pressure
The force exerted by sound waves as they compress and expand the medium they travel through.
R
Reflection
The bouncing of sound waves off surfaces, creating echoes or reverberations.
Refraction
The bending of sound waves as they pass through mediums of different densities, such as air and water.
Reverberation
The persistence of sound in an enclosed space after the sound source has stopped, caused by multiple reflections.
S
Scattering
The dispersion of sound waves in multiple directions when they encounter uneven or rough surfaces.
Sound Waves
Vibrations that propagate through a medium, such as air or water, and can be heard when they reach a listener’s ear.
Synchronization
The alignment of timing between multiple systems or signals, particularly important in live performance environments.
T
Transmission
The passage of sound through a medium or across a boundary, such as from one room to another.
Glossary U – Z
U
Unique Spaces
Venues or environments that have distinctive acoustic properties due to their shape, size, or materials used.
V
Vibration
The back-and-forth motion of particles in a medium that generates sound.
Volume
The perceived loudness of sound, directly related to the amplitude of the sound waves.
W
Wavelength
The distance between two consecutive points on a sound wave, typically measured from peak to peak.
Contents:
- Introduction to Concert Hall Acoustic Design
- What’s Changed in Concert Hall Acoustic Design Since the First Edition
- Foundations of Concert Hall Acoustic Design
3.1 Concert Hall Acoustic Design Fundamentals: Sound Waves and Propagation
3.1.1 Sound Wave Generation in Concert Hall Acoustic Design
3.1.2 Sound Wave Characteristics in Concert Hall Acoustic Design
3.1.3 Sound Propagation in Concert Hall Acoustic Design
3.1.4 How Sound Behaves in Concert Hall Acoustic Design Environments
3.1.5 Foundations of Concert Hall Acoustic Design: Summary - The Science Behind Concert Hall Acoustic Design
4.1 Core Principles of Concert Hall Acoustic Design
4.2 Concert Hall Acoustic Design: Reflection, absorption and diffusion
4.3 Shape, Geometry and Layout in Relation to Concert Hall Acoustic Design
4.4 Computer Modelling & Acoustic Simulation in Concert Halls
4.5 Sound System Design in Concert Halls
4.6 User Interface & System Control Design
4.7 Visual Surfaces as Acoustic Variables
4.8 Integrating Visual Elements Within Concert Hall Acoustic Design
4.9 The Science Behind Concert Hall Acoustic Design: Summary - Performance-Led Concert Hall Acoustic Design
5.1 Measuring Acoustic Properties in Concert Halls
5.2 Acoustic Modelling
5.3 Performance-Specific Acoustic and Visual Considerations
5.4 Performance-Led Concert Hall Acoustic Design: Summary - Architectural Influence on Concert Hall Acoustic Design
6.1 Architectural Integration of Visual Systems & their impact on concert hall acoustic design
6.2 Integrated Design Considerations in Concert Hall Acoustic Design
6.3 Architectural Influence on Concert Hall Acoustic Design: Summary - Architectural Style and Its Impact on Concert Hall Acoustics
7.1 Architectural Style and Sound Properties
7.2 Acoustic Characteristics of Architectural Styles
7.2.1 Ancient Greek / Roman
7.2.2 Modernist / Brutalist
7.2.3 High-Tech Architecture
7.3 Architectural Style and Visual Integration
7.4 Summary - Accessibility Considerations in Concert Hall Acoustic Design
8.1 Creating Accessible Concert Hall Acoustic Design
8.2 Accessibility for Hearing-Impaired Audiences
8.2.1 Hearing Loops
8.2.2 Assistive Listening Systems (ALS)
8.2.3 Real-Time Captioning Systems
8.3 Accessibility for Sight-Impaired Audiences
8.3.1 Audio Description Systems
8.3.2 Tactile and Braille Displays
8.4 Integrated Accessibility Technologies within Concert Hall Acoustic Design
8.4.1 Accessible Mobile Apps
8.4.2 Infrared (IR) and Radio Frequency (RF) Systems
8.5 Visual Systems as Accessibility Infrastructure
8.6 Planning for Accessible Concert Hall Design
8.7 Accessibility as Core Performance Infrastructure
8.8 Accessibility Considerations in Concert Hall Acoustic Design: Summary - Concert Hall Acoustic Design: Spoken Word Performances
9.1 Spoken Word Performance Acoustic Design
9.2 Acoustic Considerations
9.3 Microphones
9.4 Speakers
9.5 Visual Alignment and Intelligibility
9.6 System Tuning
9.7 Backup Systems
9.8 Training & Communications
9.9 Concert Hall Acoustic Design for Spoken Word Performances: Adaptation and Summary - Concert Hall Acoustic Design: Classical Music performances
10.1 Acoustic Considerations
10.2 Microphones
10.3 Speakers
10.4 Ambient Noise
10.5 Sound Check and System Tuning
10.6 Concert Hall Acoustic Design for Classical Music: Summary - Concert Hall Acoustic Design: Rock & Contemporary Music Performances
11.1 Acoustic Considerations
11.2 Reverberation Time (RT60) and Hall Design
11.3 Electronic Sound Reinforcement
11.4 Microphones
11.5 Speakers
11.6 Low-Frequency Reinforcement
11.7 Ambient Noise & Feedback Management
11.8 Dynamic Range and Volume Management
11.9 Spatial Audio and Immersive Presentation
11.10 Visual Synchronisation and Perceptual Impact
11.11 Concert Hall Acoustic Design for Contemporary Music: Summary - Acoustic Design for Concert Halls: Musical Theatre Performances
12.1 Acoustic Considerations
12.2 Reverberation Time (RT60) and Concert Hall Design
12.3 Electronic Sound Reinforcement
12.4 Microphone Techniques and Ensemble Sound
12.5 Speakers: Low-Frequency Reinforcement and Music
12.6 Spatial Audio and Sound System Design
12.7 Ambient Noise and Feedback Management
12.8 Dynamic Range and Volume Management
12.9 Spatial Audio and Narrative Localisation
12.10 Visual Synchronisation and Control
12.11 System Coordination and Performance Control
12.12 Concert Hall Acoustic Design for Musical Theatre: Summary - Speaker Systems used in Concert Hall Acoustic Design
13.1 Types of Speakers and Suitability for Different Genres
13.2 Concert Hall Acoustic Design: Line Array Speakers
13.3 Concert Hall Acoustic Design: Point Source Speakers
13.4 Concert Hall Acoustic Design: Subwoofers
13.5 Concert Hall Acoustic Design: Horn Speakers
13.6 Concert Hall Acoustic Design: Subwoofer and Low-Frequency Array Design
13.6.1 Subwoofer and Low-Frequency Array Design - Noise Dampening & Acoustic Treatments in Concert Hall Acoustic Design
14.1 Importance of Noise Control in Concert Hall Acoustic Design
14.2 Strategies for Reducing Unwanted Noise
14.3 Concert Hall Acoustic Design: Acoustic Treatments
14.4 Balancing Acoustic Treatment with Aesthetics - Concert Hall Acoustic Design: Sound Engineering Best Practice
15.1 Best Practice for Sound Engineers
15.2 Handling Live Acoustic Challenges
15.3 Collaboration with Performers and Production Teams
15.4 Troubleshooting Common Sound Issues
15.4.4 Backup Planning
15.4.5 Training and Continuing Education - Conclusion: The Future of Concert Hall Acoustic Design
- Glossary of Concert Hall Acoustic Design Terms
