Pacha Ibiza: Nightclub AV Installation Case Study
Few venues are as iconic as Pacha Ibiza. The club’s team envisioned a new centrepiece for the dancefloor. One that could morph between canopy, video wall, and moving sculpture, they knew it would take something extraordinary. Audiotek stepped in to design and deliver a nightclub AV installation unlike anything seen before on the island.
Pacha Ibiza Project Challenges
Designing for Pacha isn’t just about flash. It’s about flair, flexibility, and function. This wasn’t a simple LED wall or lighting rig. The brief called for a kinetic system that could transform on demand. The main challenges included:
- Engineering a moveable LED structure large enough to dominate the space.
- Achieving high-speed, multi-directional movement without disrupting the club experience.
- Integrating video, lighting and motion into one seamless system.
- Building it all without altering the iconic architecture of the club.
It was part engineering feat, part creative choreography.
Project Scope – AV Installation at Pacha Ibiza
Audiotek’s remit was to create a state-of-the-art, motorised rig. The final concept? A striking hexagonal video sculpture that could be:
- A canopy above the crowd
- A backdrop behind the DJ
- A multi-angle video installation
This kinetic centrepiece would become the heartbeat of Pacha’s new dancefloor.
Design Approach to Nightclub AV Installation
Collaborating closely with Pacha’s in-house team, Audiotek proposed a custom-built hexagon-based rig as the centrepiece.
The design vision was based on movement, surprise, and adaptability. We didn’t just develop a screen—they created a show that shifts shape throughout the night. By mapping all LED panels as a single canvas and integrating motion controls, the entire structure responds to the music, content, and lighting cues in real time.
And crucially, the entire system is modular, serviceable, and can be reprogrammed for future shows and seasons.
Pacha Ibiza Key Innovations

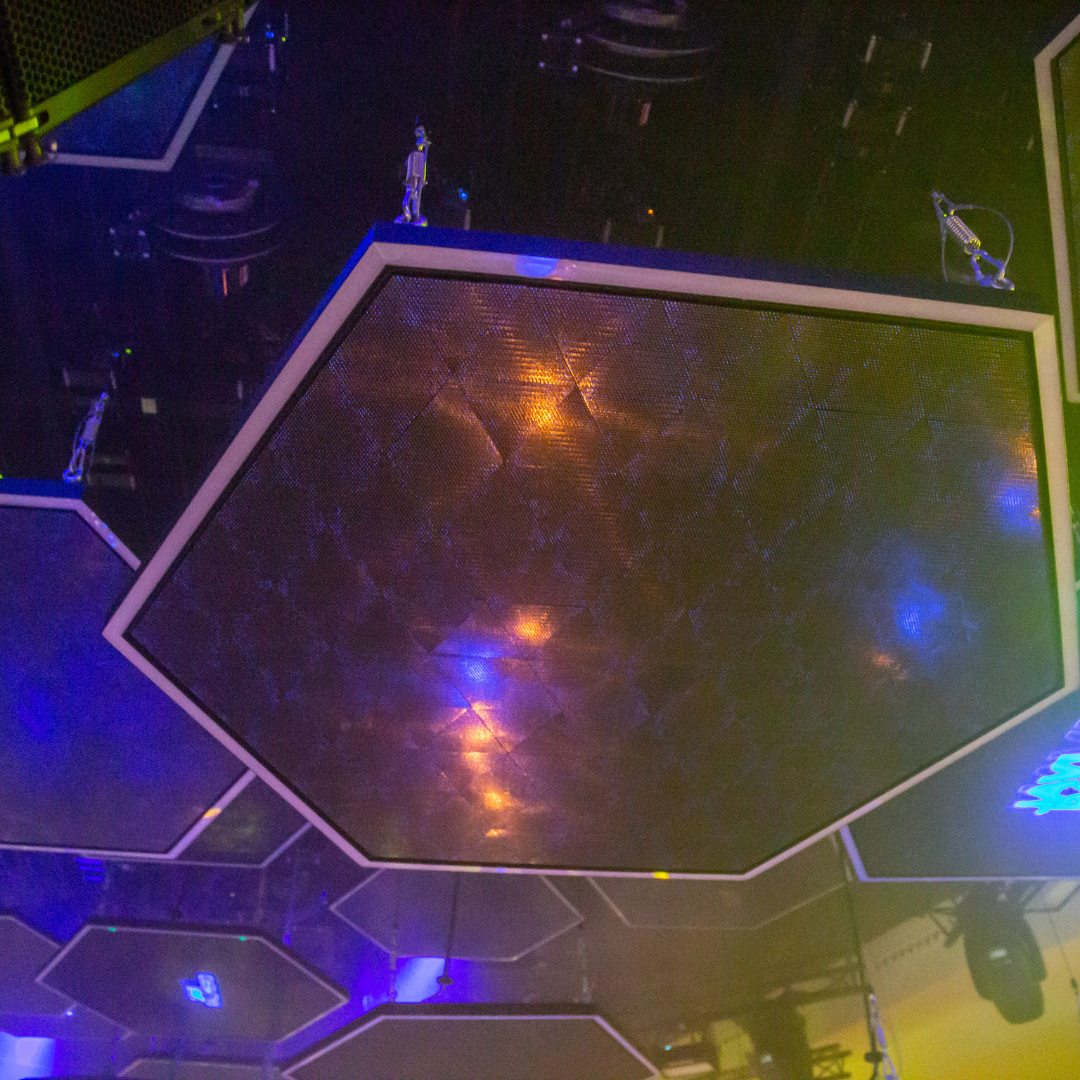

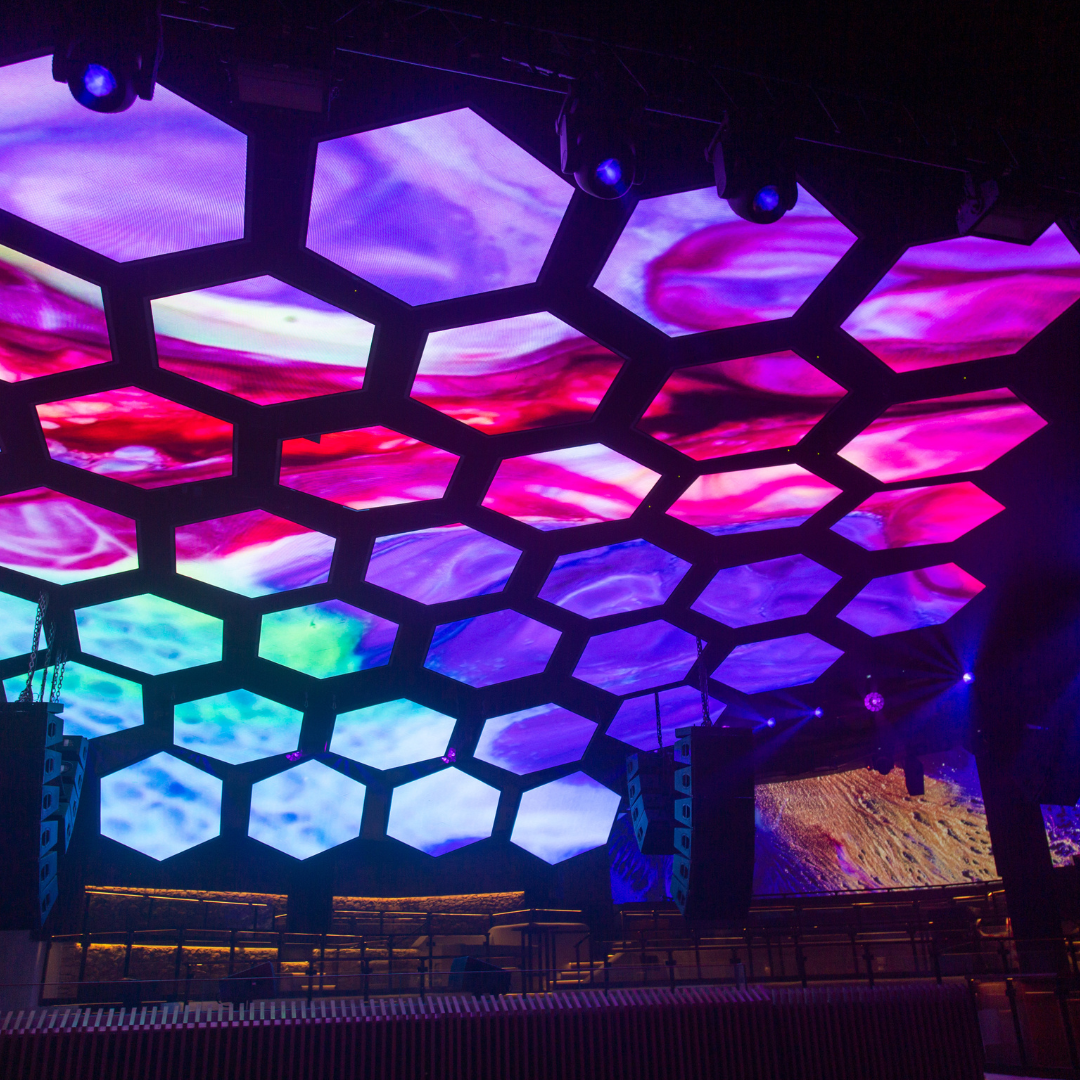

- 37 Custom Hexagonal LED Panels: Each 1.8m wide, forming a massive modular display. Supplied by TaylorLEDS, the panels are built into aluminium frames wrapped with high-power LED strips.
- LUCID Custom LED Frames: Providing the backbone for LED integration, allowing for seamless pixel-mapping across the entire structure.
- Walberg Winch25 Motors (x148): Each movement is DMX-controlled for precise, synchronised choreography. Whether it’s a slow sweep or a strobe-driven collapse, the motion is fluid and reliable.
- Stage Ninja Cable Reels: Custom-built to manage the motorised cable paths safely and neatly across the rig.

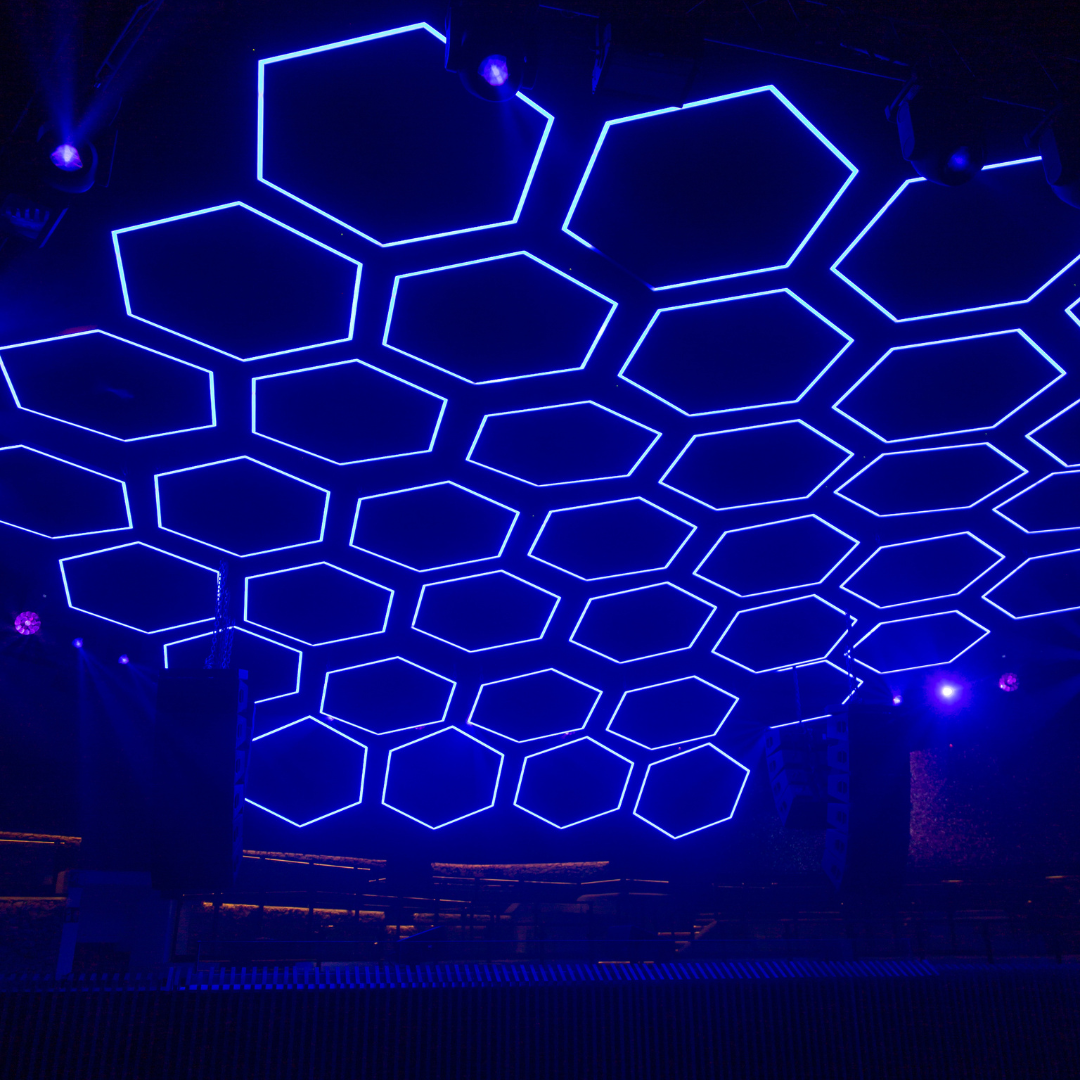

- Matrix-Controlled Outline LEDs: Additional honeycomb-shaped LED outlines offer a layer of pixel-mapped ambient lighting, independent of the video content.
- Projection-Mapped Back Wall: Powered by new Panasonic projectors, the entire rear wall becomes an extension of the visual performance, blending content across surfaces.
Pacha Ibiza Installation & Execution
Bringing the system to life meant executing with millimetre precision. Trusses were custom rigged to accommodate over 140 motors, each with independent movement parameters.
During blackouts, the rig repositions, creating surprise visual reveals. From low canopy to fully vertical video screen, the panels shift the dynamic of the room in seconds.
Programming the motion and media was a major collaboration between Audiotek and the Pacha tech team, ensuring the system could be driven night after night with fingertip control.
Commercial & Educational Insights
This project illustrates how nightclubs can push the boundaries of immersive AV without losing their soul. For operators, the value goes far beyond flash:
Commercial Gains
Increased social media shareability = stronger brand amplification
Configurable rig supports different show formats and performers
Reduced long-term costs due to modular, upgradable system
Educational Takeaways
Kinetic AV systems require coordination across disciplines
Pixel-mapped motion and lighting can dramatically shift perception
AV design can enhance architecture rather than fight it
Conclusion – Nightclub AV Installation That Moves the Crowd
Pacha Ibiza isn’t just about dancing. It’s about performance, transformation, and atmosphere. The Audiotek-designed hexagonal rig captures all three. It moves with the music. It surprises the crowd. It gives the venue a living, beating visual heart.
This wasn’t just an AV installation. It was a reinvention.
