Racecourse PA Design at Cheltenham
When the Jockey Club called for a full-scale audio rethink at Cheltenham Racecourse (one of their flagship venues), Audiotek answered. The Course needed more than just an upgrade; it needed a system wide transformation. It needed to deliver crystal-clear sound to thousands, across indoor suites, outdoor grandstands, and emergency zones.
From June to October 2025, Audiotek rolled out a radical new racecourse PA design. The result: stadium-scale performance, rider-to-room clarity, and rock-solid redundancy ready for race day.
Project Challenges at Cheltenham Racecourse
Racecourses aren’t built for sound; they’re built for spectacle. Which makes getting audio right a tall order.
- Heritage Meets Hardware: Cheltenham’s grandstand is an older building. Running fireproof fibre and upgraded cabling through it was a logistical feat.
- Emergency-Grade Design: The new PA isn’t just for atmosphere; it’s integrated with emergency paging protocols across the entire site.
- Coordination with Consultants: Audiotek worked directly with Jockey Club consultants and L-Acoustics to model, test, and optimise every audio zone.
Project Scope
Two core projects delivered as one seamless upgrade:
Project One: Sitewide QSC Q-SYS Control
- Full-fibre infrastructure upgrade across the racecourse.

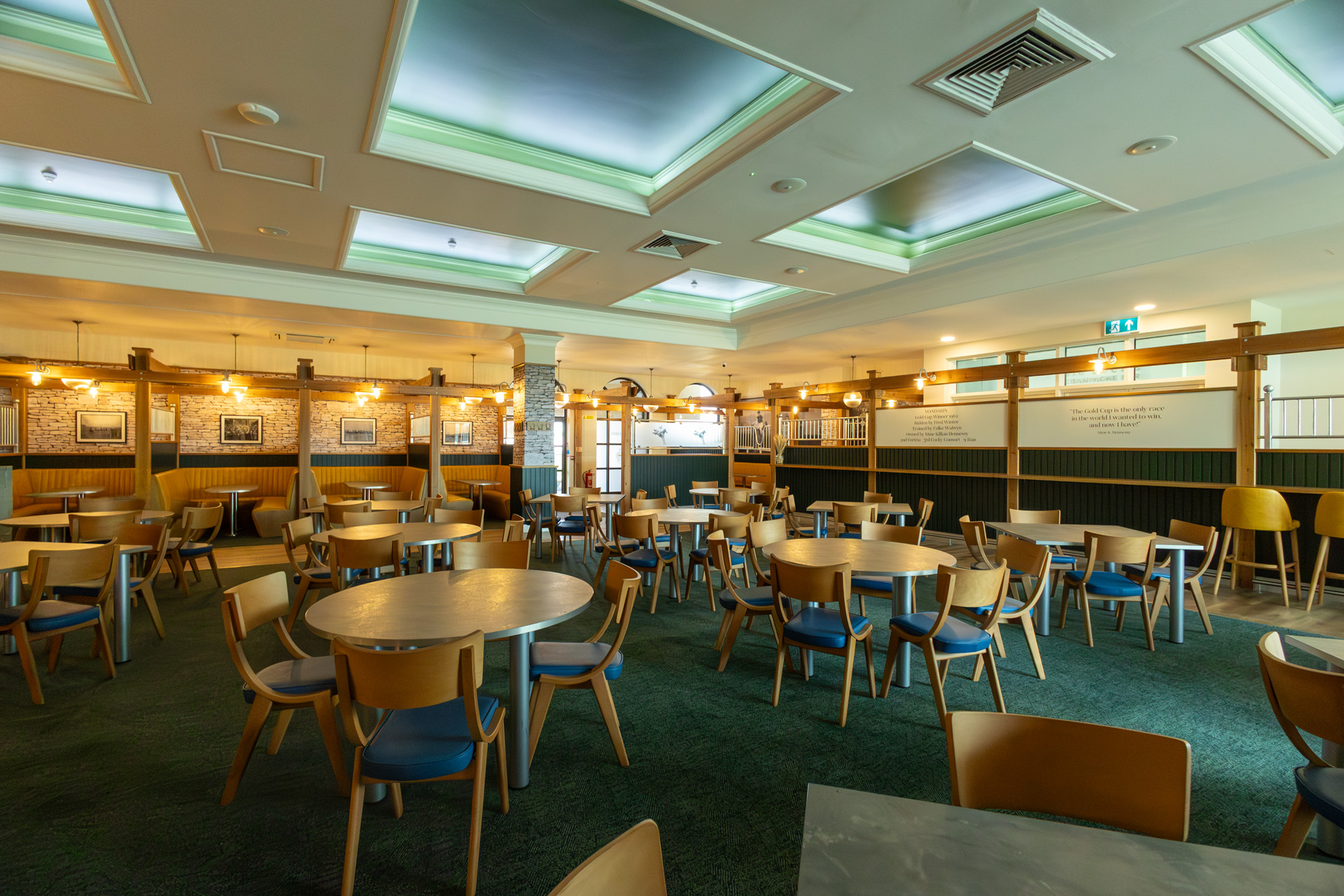

- Fireproof cabling to every internal room.
- Centralised Q-SYS control with paging from event control and mix position.
- Redundant routing and scalable zone control via QSC Core processors.
Project Two: Grandstand PA Overhaul

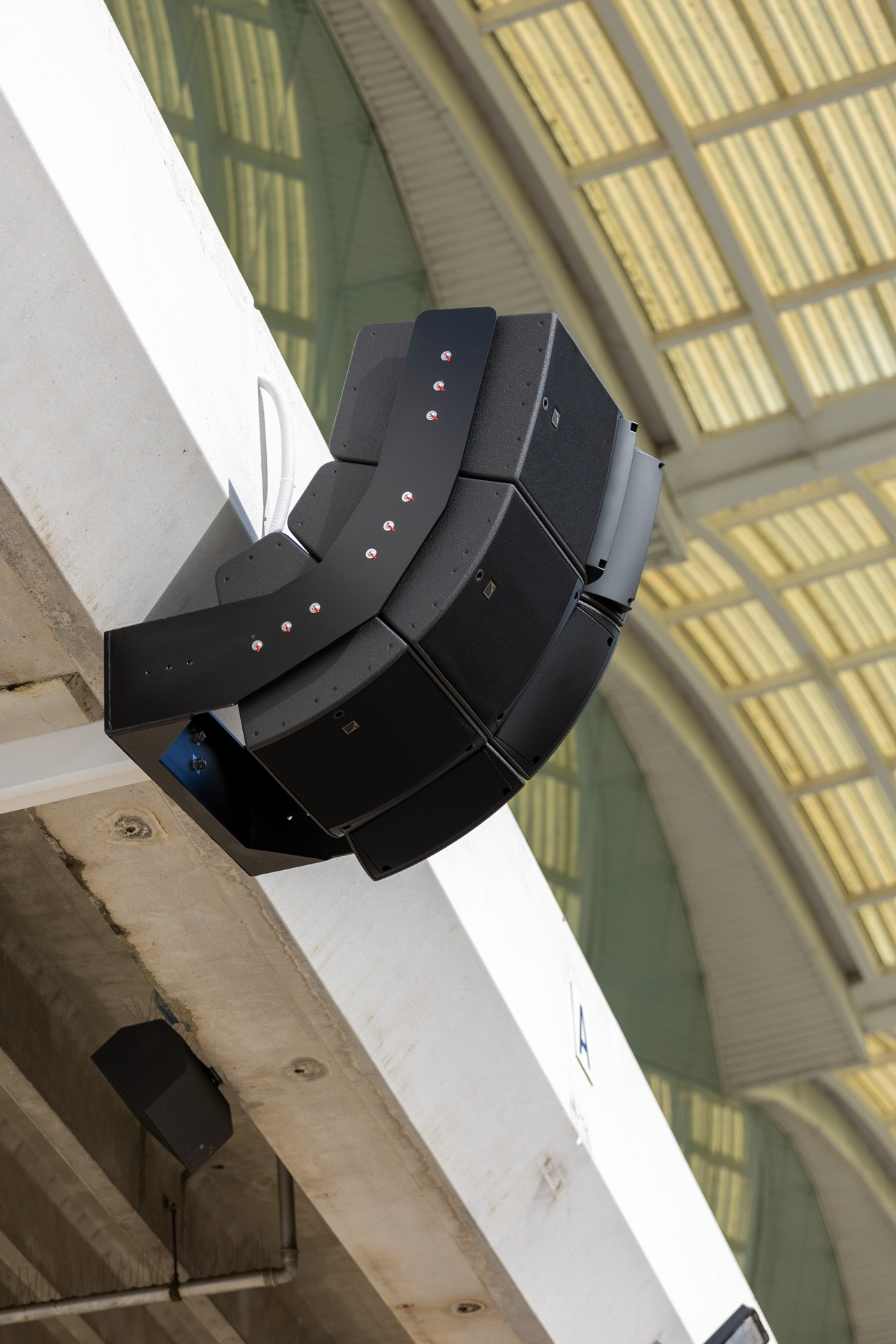

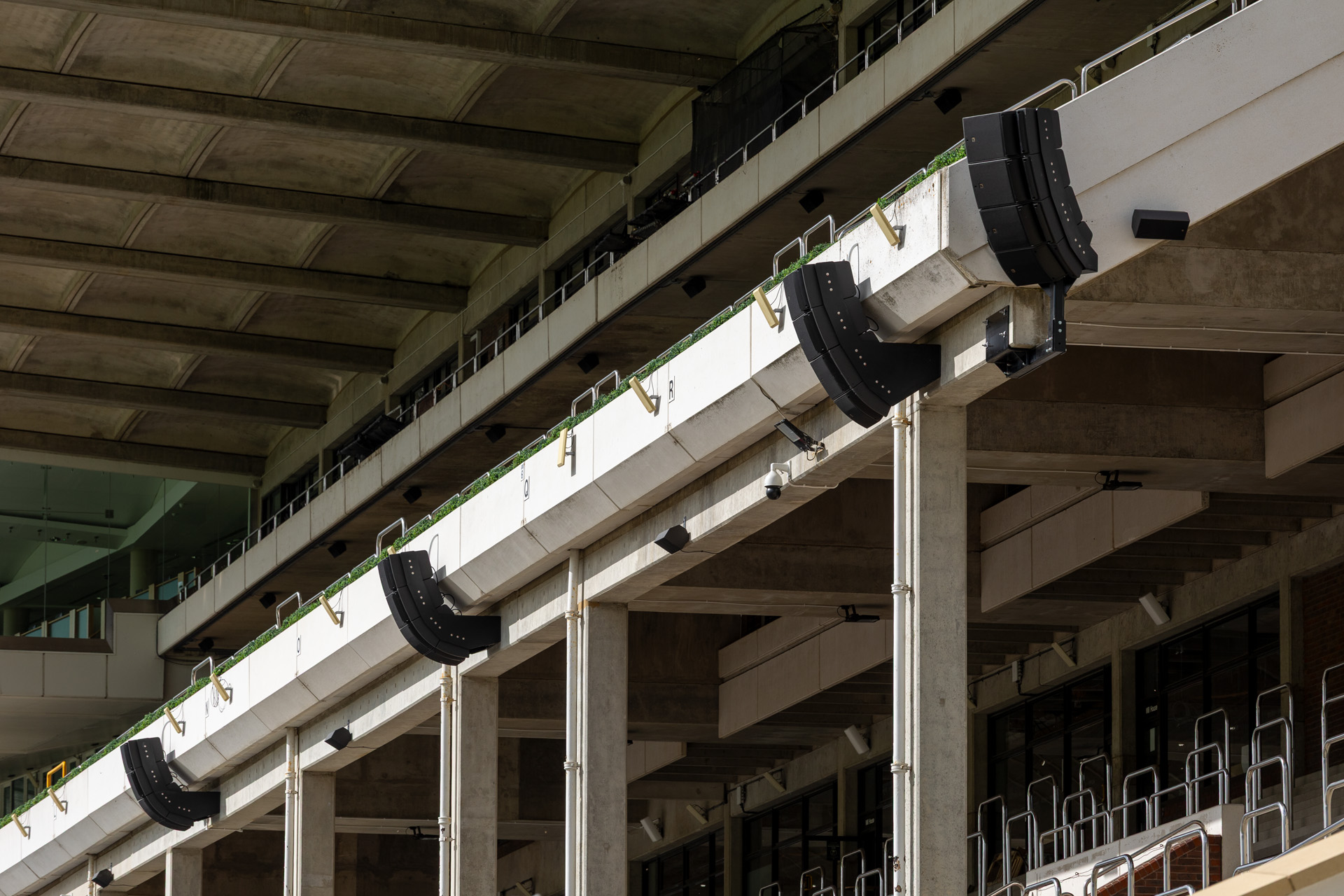

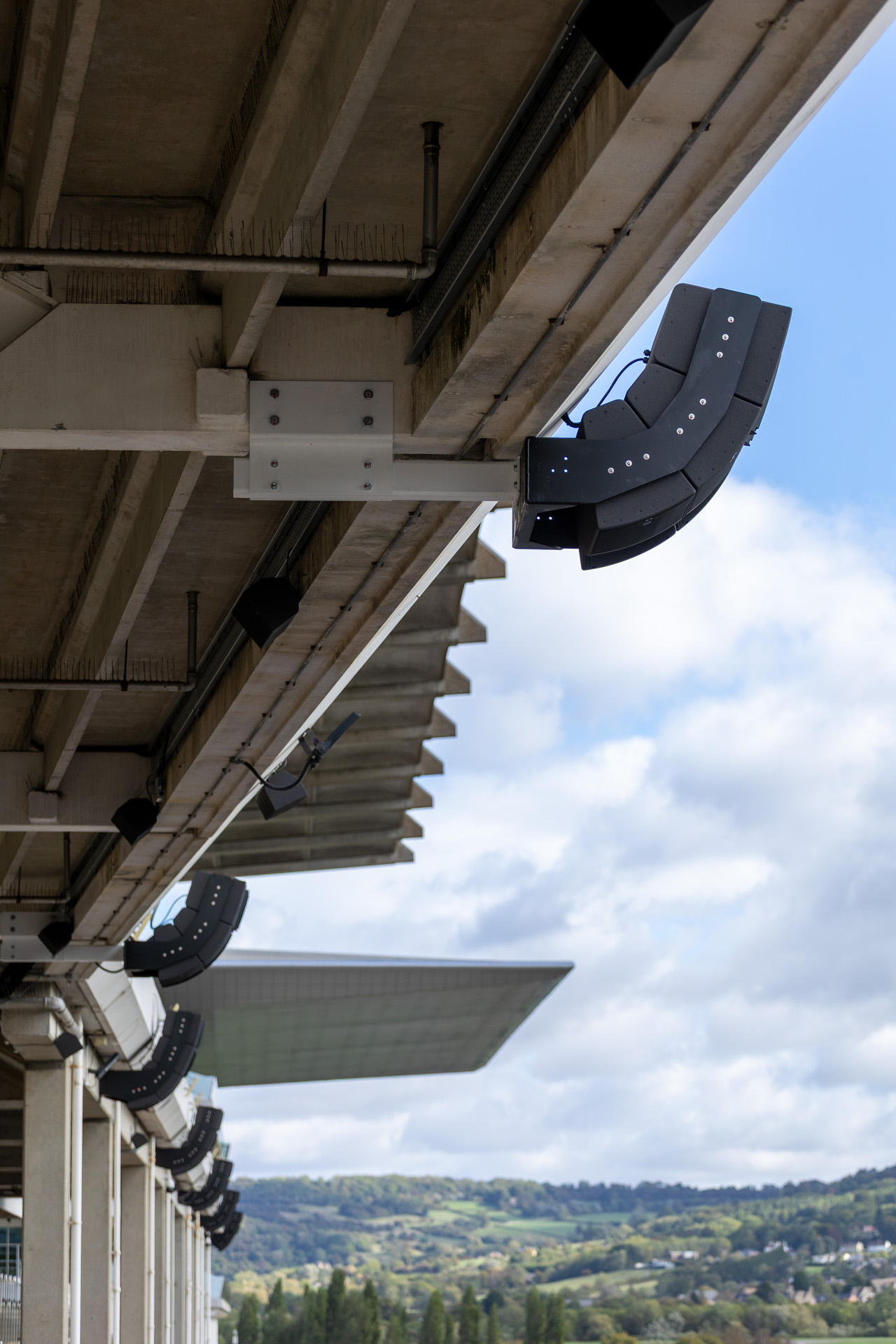

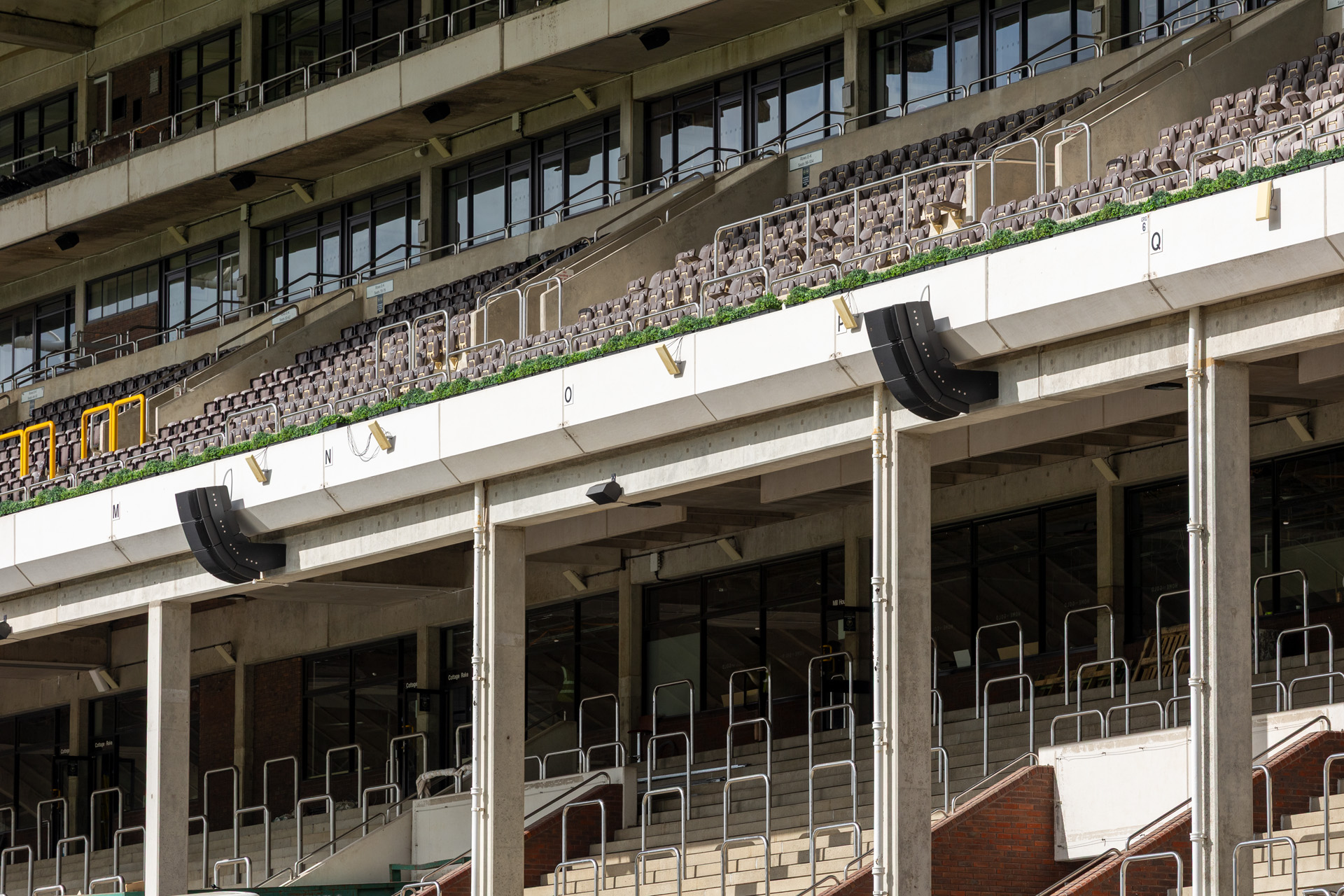

- Brand-new L-Acoustics A15i speaker array on custom brackets.

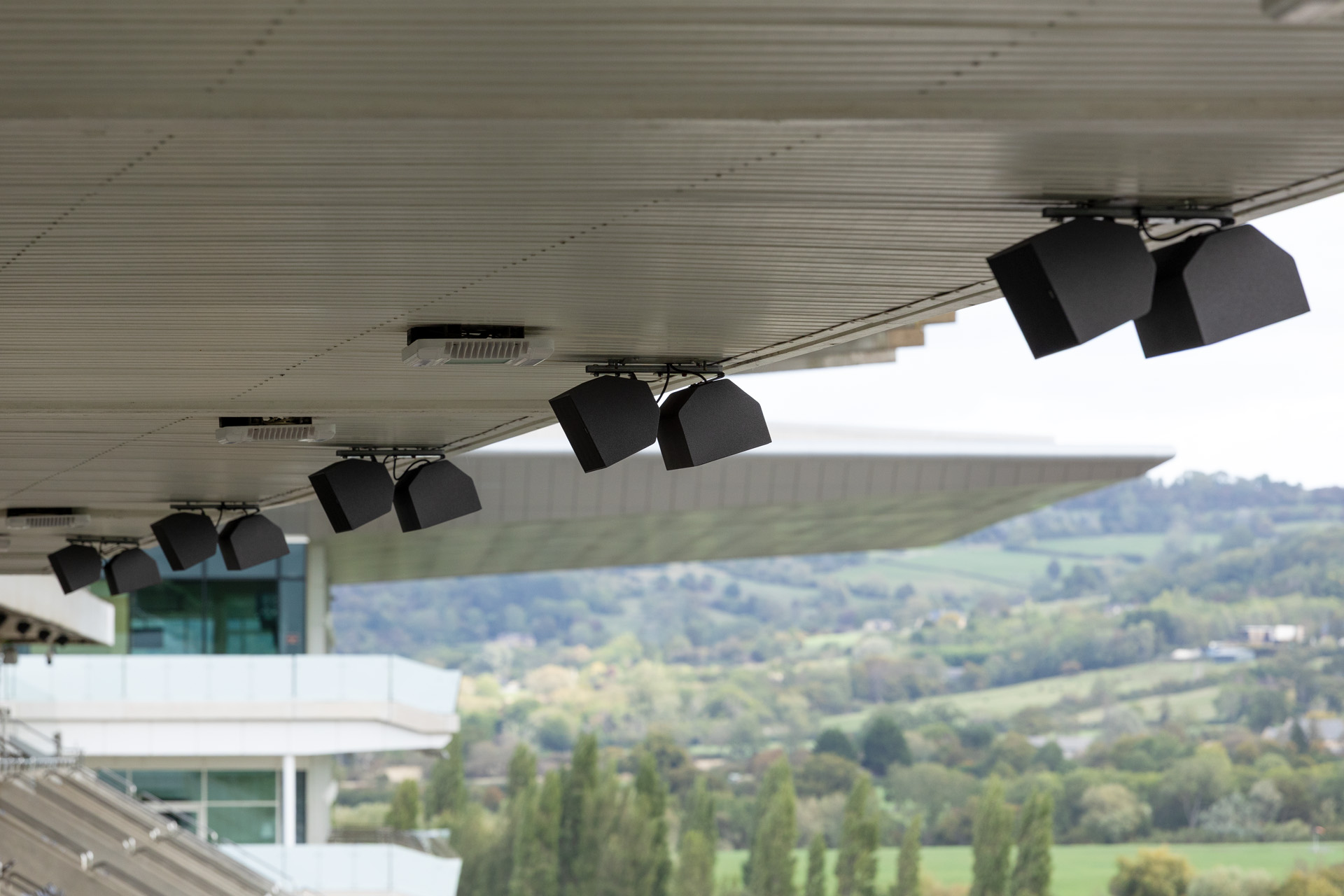

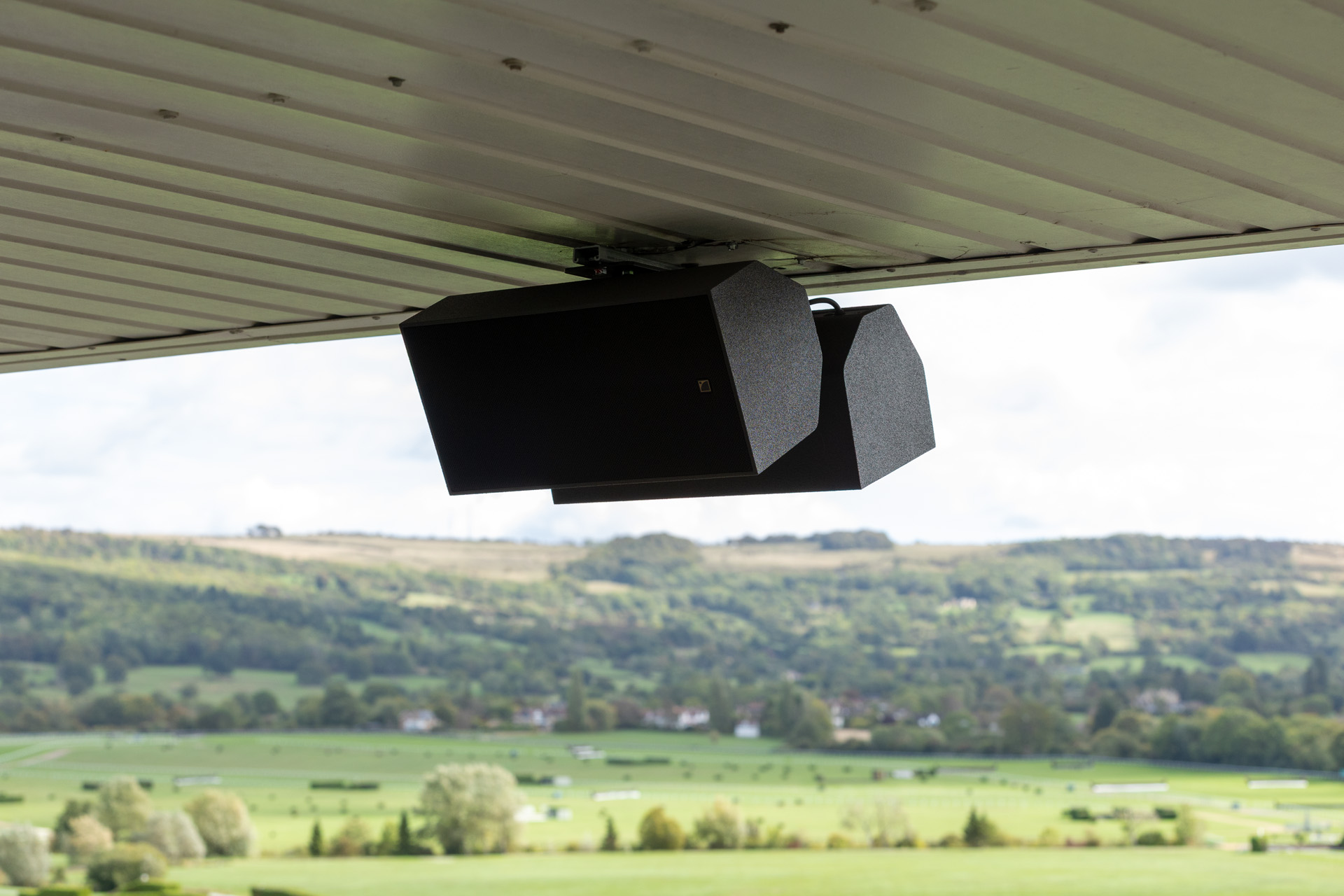

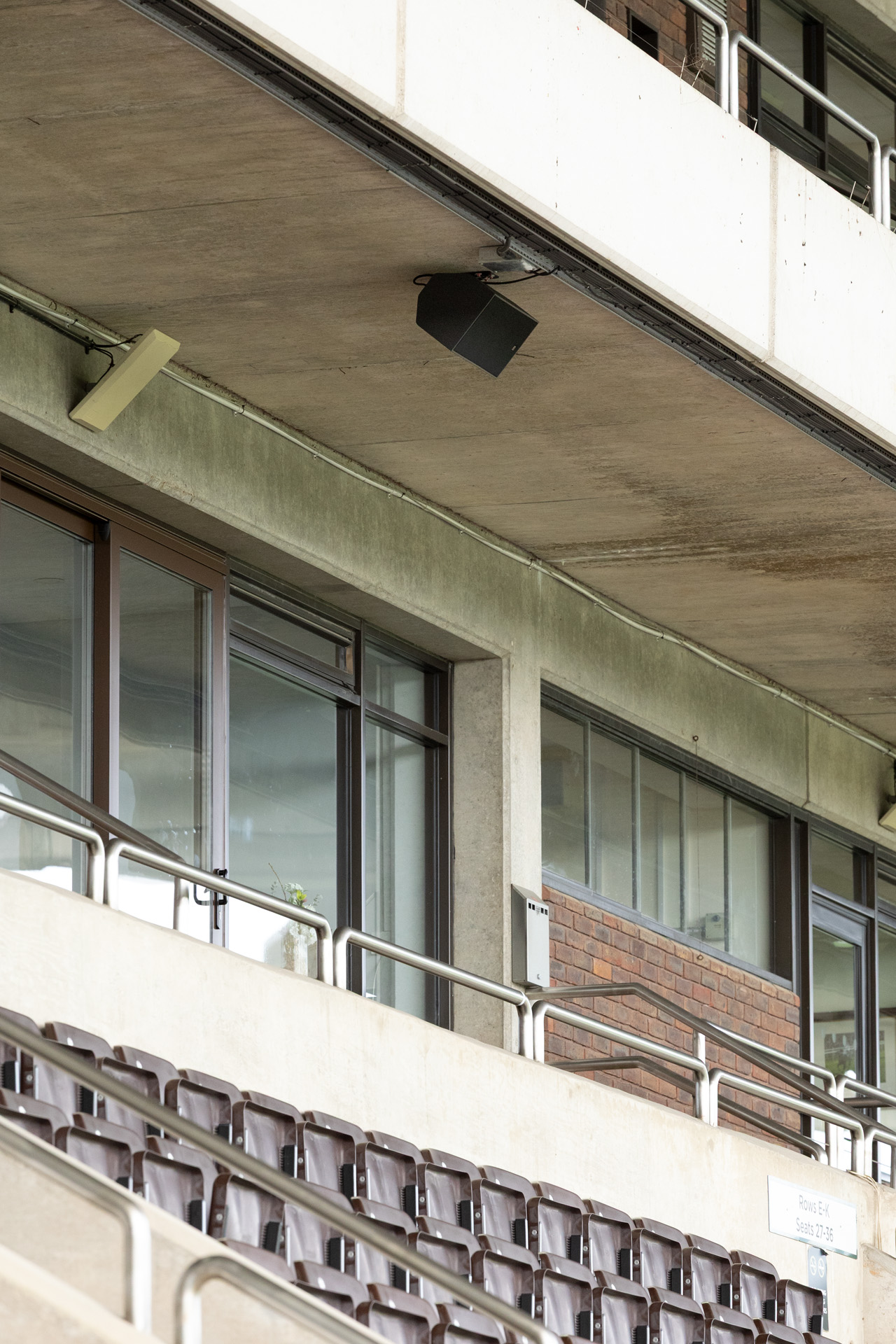

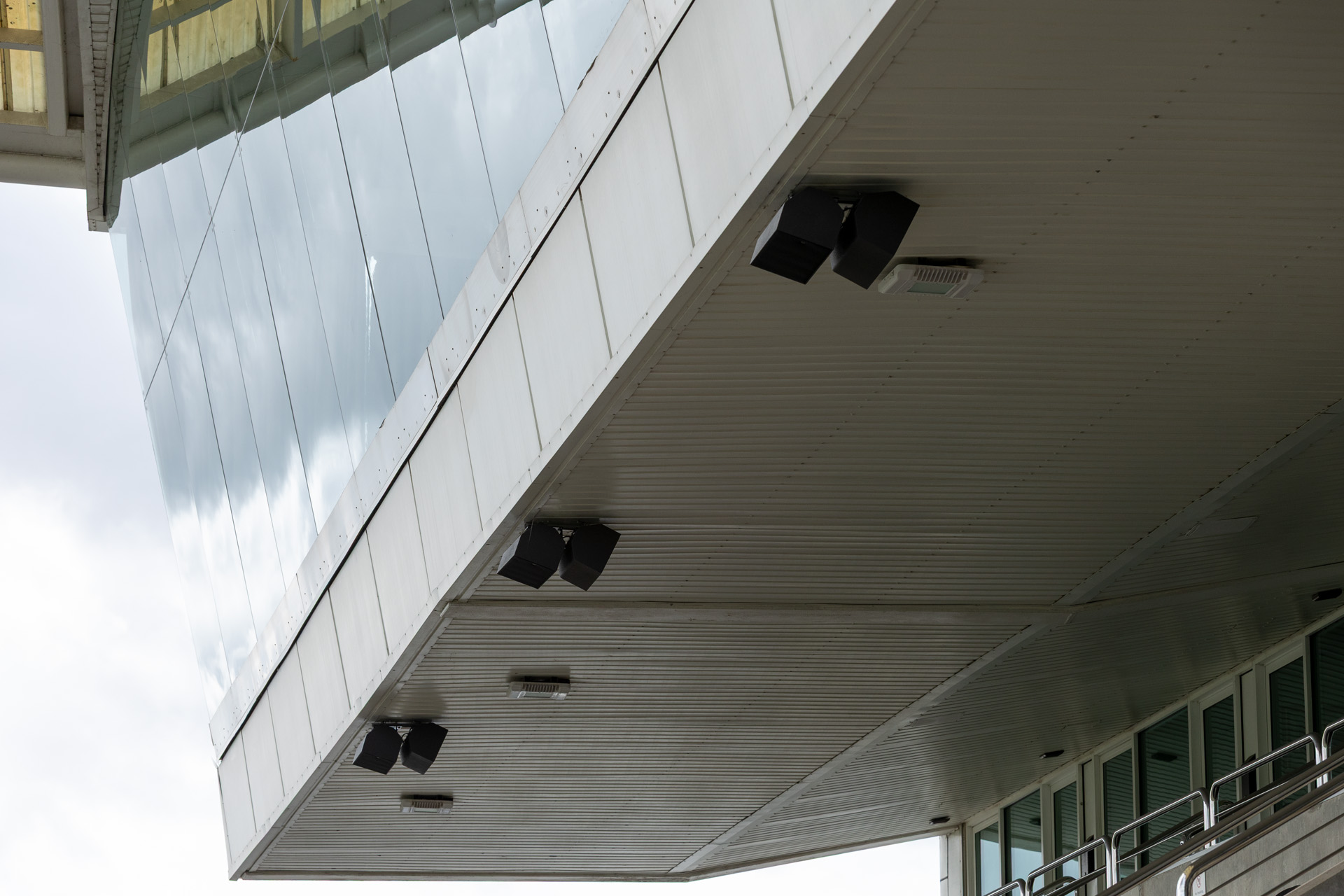

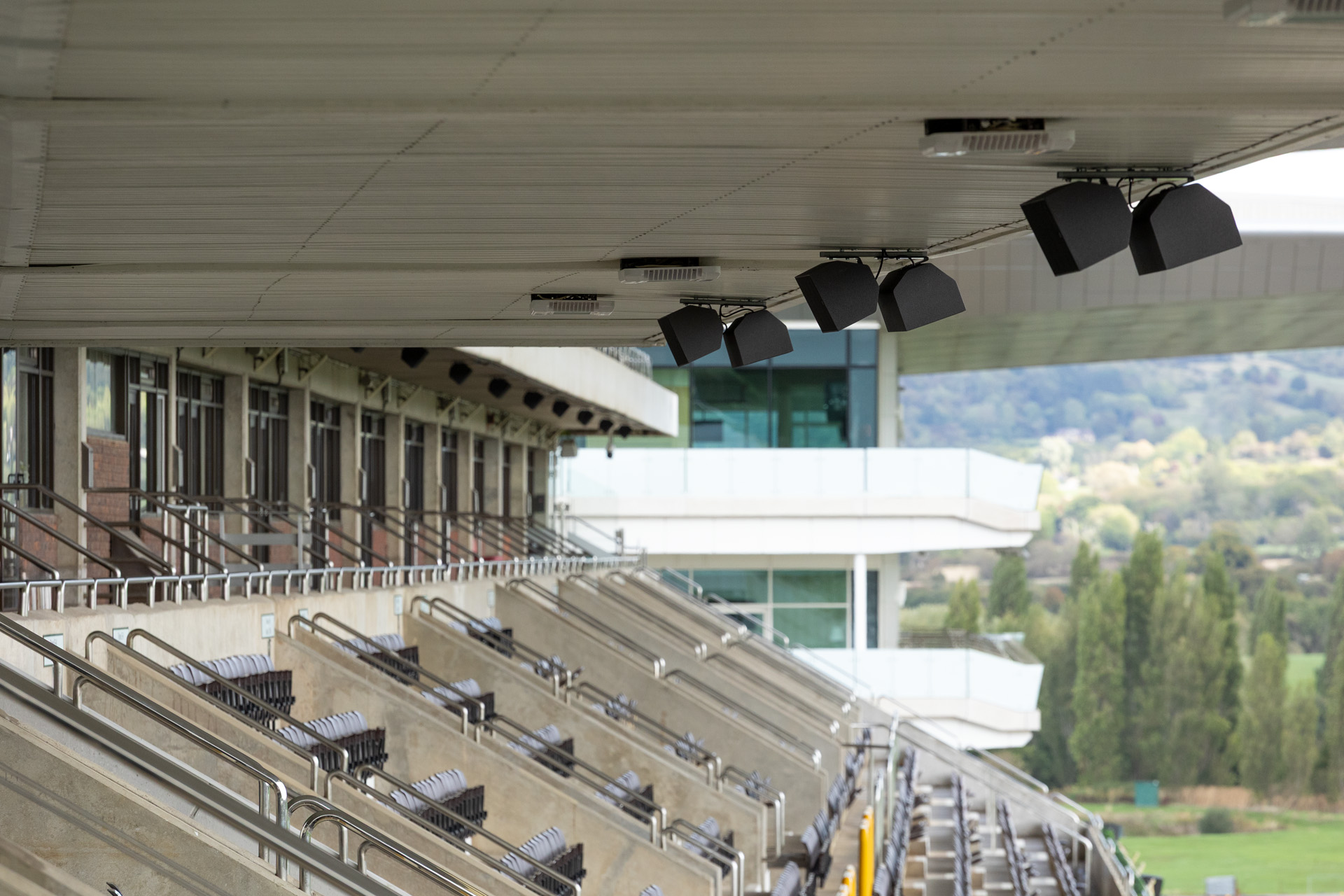

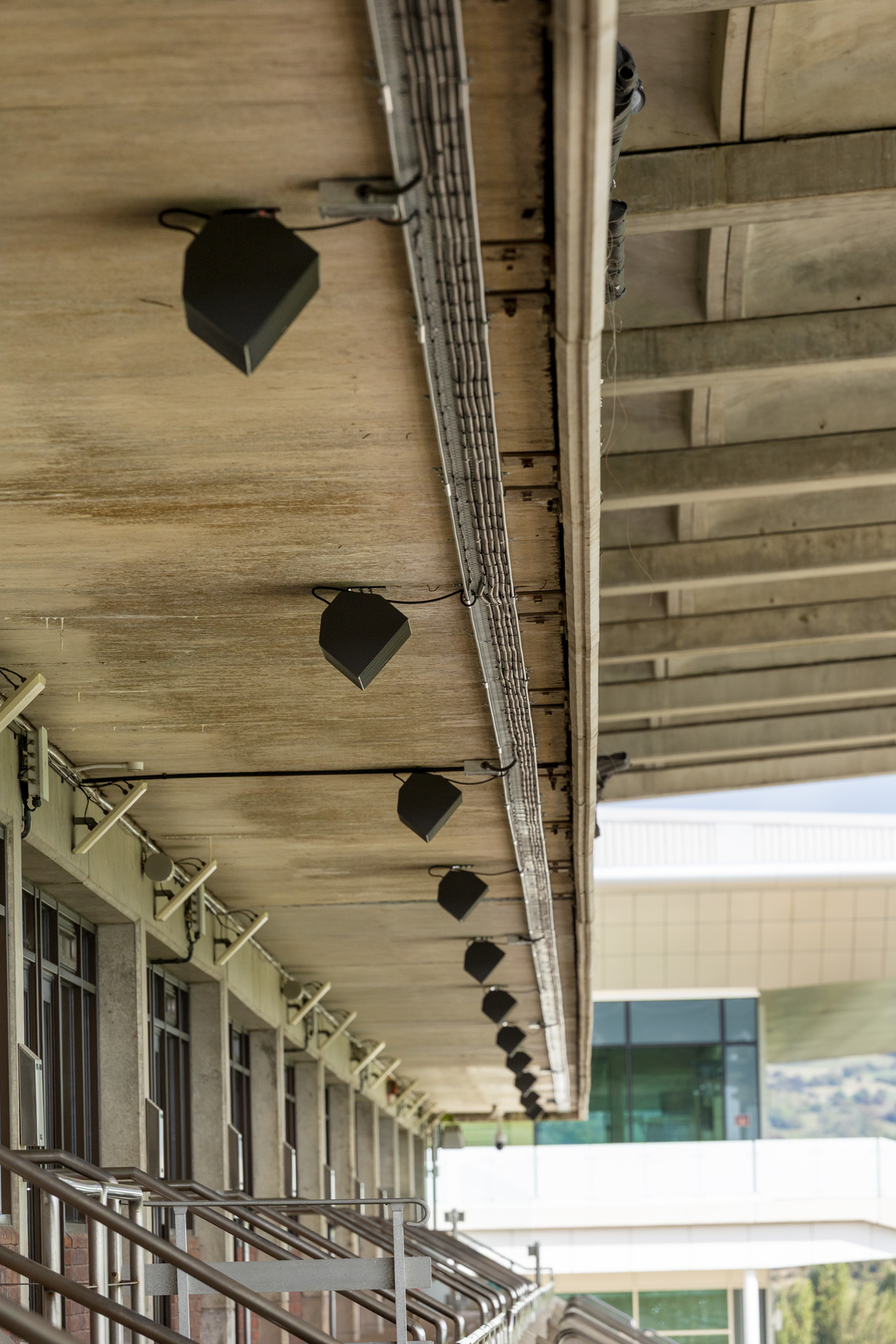

- 54 x X8i fills for clarity in under-balcony and edge zones.
- All speakers powered by LA7.16i amps, each one individually tuned.
- System-wide use of L-Acoustics FIR filters for optimised coverage.
Design Tools & Technical Expertise
Nothing was left to chance.
- Acoustic simulations conducted with Ross and Kyle from L-Acoustics.

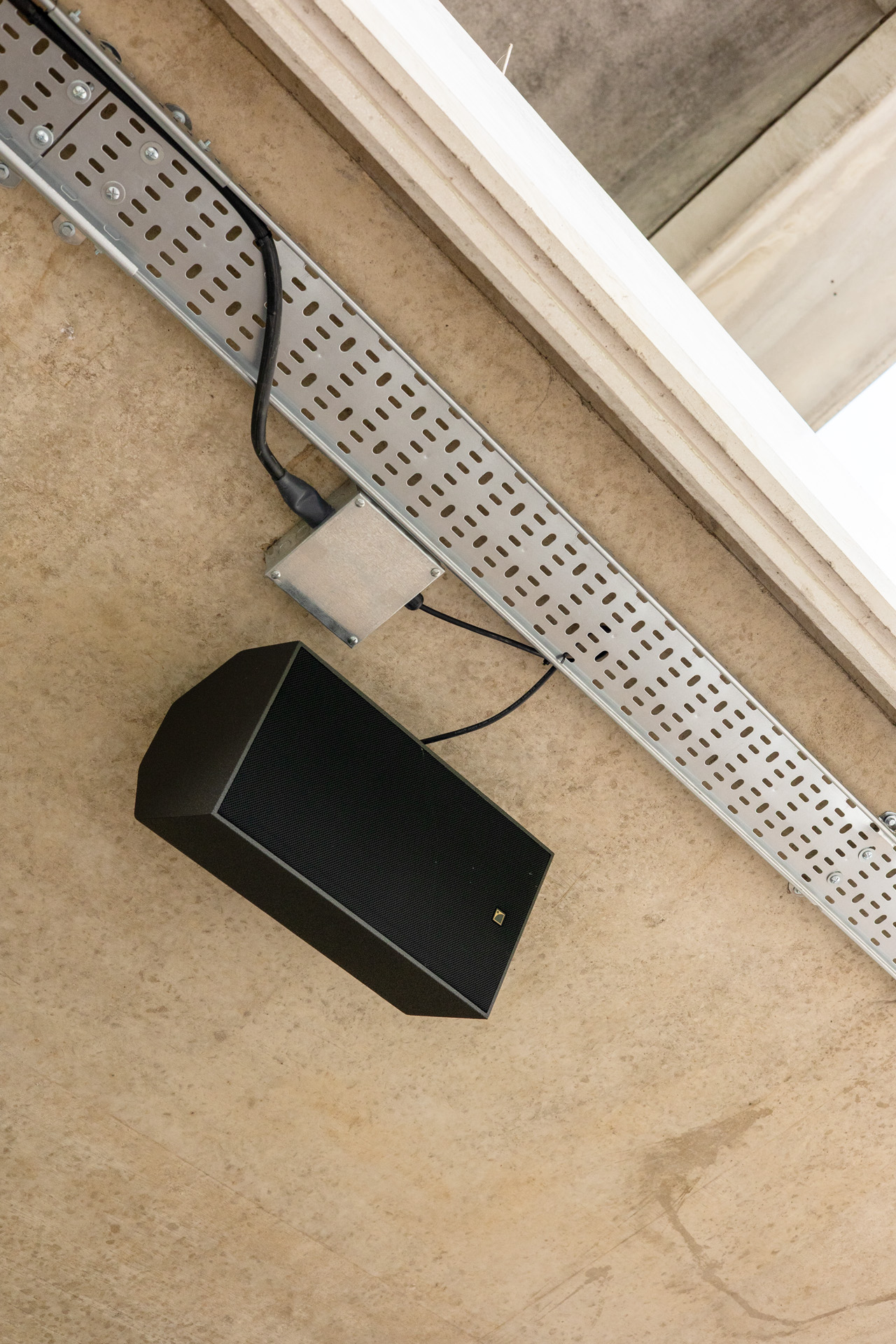

- Fire-rated cabling routed throughout the site.
- Custom brackets and amp room planning for discreet yet accessible hardware installs.
- Paging and zone control mapped to support live events and emergency use.
Key Innovations at Cheltenham Racecourse
- Every Speaker Counts: Individual amplification per unit allows granular tuning for speech and emergency paging.
- Fibre-First Design: A new backbone of fireproof fibre ensures speed, safety, and future expansion.
- Dual-Use Infrastructure: High-performance audio for race day; critical coverage for emergency comms.
Installation & Execution
Timeline: June to October 2025
- Live testing ahead of first race event on 25 October
- Collaborated with Lucid Creates for hardware integration.
- Installed with zero downtime during prep season.
Project Quotes
“This was full stadium PA design, balancing crowd atmosphere with emergency clarity. Every speaker, bracket and fibre strand mattered.” — Ash Attwood, Senior Engineer, Audiotek
Educational Insights
This project showcases:
- Acoustic Modelling in Complex Venues: Predictive tuning in large, open-air and mixed-use zones.
- Designing for Dual-Purpose AV: Systems that handle both entertainment and emergency scenarios.
- Working Within Heritage Structures: Retrofitting modern systems into legacy architecture without compromise.
Conclusion
The Cheltenham Racecourse new PA system isn’t just loud, it’s smart, robust, and ready for anything. By combining QSC’s Q-SYS control with L-Acoustics audio performance, Audiotek delivered a racecourse PA design that sets the new standard for stadiums.
